Creating two subnets on your VPC

  1. Log into AWS with your EC2 credentials and select VPC.
  2. Select Start VPC Wizard to create a new VPC.

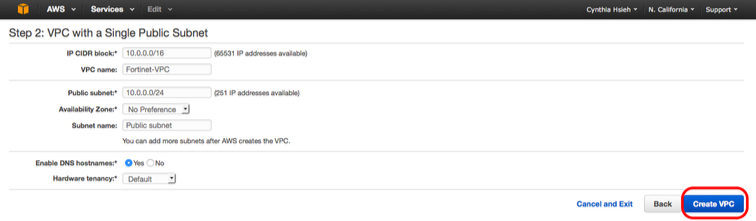

  3. Select VPC with a Single Public Subnet.
  4. Fill in the information as required and select Create VPC.

  5. You have created a VPC with a single public subnet available. This example refers to the subnet as Fortinet-VPC. To deploy the FortiGate-VM, you must also create a private subnet. Go to Subnet and select Create Subnet.

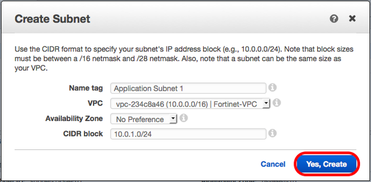

  6. Fill in the information as required and select Yes, Create. This example refers to the subnet as "Application Subnet 1".

Creating two subnets on your VPC

  1. Log into AWS with your EC2 credentials and select VPC.
  2. Select Start VPC Wizard to create a new VPC.
  3. Select VPC with a Single Public Subnet.
  4. Fill in the information as required and select Create VPC.

  5. You have created a VPC with a single public subnet available. This example refers to the subnet as Fortinet-VPC. To deploy the FortiGate-VM, you must also create a private subnet. Go to Subnet and select Create Subnet.
  6. Fill in the information as required and select Yes, Create. This example refers to the subnet as "Application Subnet 1".
