Deployment

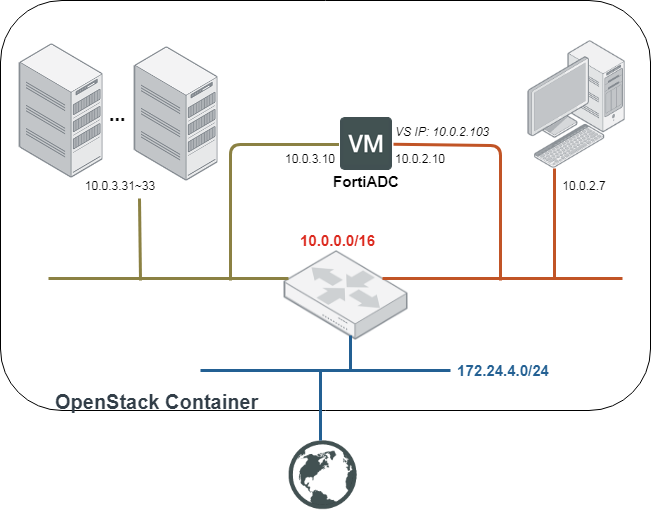

FortiADC can only be deployed within an OpenStack container environment.

The following are example configurations deployed on FortiADC through Octavia:

Configuring a virtual server:

config load-balance virtual-server

edit "09e01bbc-4076-44ea-8d0e-558ab6503655"

set type l7-load-balance

set ip 10.0.2.103

set load-balance-profile LB_PROF_HTTP

set load-balance-persistence LB_PERSIS_HASH_SRC_ADDR

set load-balance-method LB_METHOD_ROUND_ROBIN

set load-balance-pool 3ed56621-9825-494a-9246-452e591f913e

next

end

Configuring a real server pool:

config load-balance pool

edit "3ed56621-9825-494a-9246-452e591f913e"

set health-check-ctrl enable

set health-check-list 7baa43a4-633b-4f35-af0d-02f9aedd9422

set real-server-ssl-profile NONE

config pool_member

edit 1

set pool_member_cookie rs1

set real-server 38a40738-becf-4736-a16b-d3b131275f31

next

edit 2

set pool_member_cookie rs2

set real-server 0cc6107e-8848-4f39-80e3-873a788b9000

next

edit 3

set pool_member_cookie rs3

set real-server fef07534-ef8e-48a3-89d3-1db551b952a9

next

end

next

end

Configuring real servers:

config load-balance real-server

edit "38a40738-becf-4736-a16b-d3b131275f31"

set ip 10.0.3.31

next

edit "0cc6107e-8848-4f39-80e3-873a788b9000"

set ip 10.0.3.32

next

edit "fef07534-ef8e-48a3-89d3-1db551b952a9"

set ip 10.0.3.33

next

end
