config system feature-visibility/feature-visibility-global

Use this command to selectively control the visibility of configurable features in the GUI. This allows administrators to streamline the interface by hiding features that are unused, inactive, or not relevant to the current deployment.

Feature visibility settings affect only the graphical interface and do not control feature activation. A hidden feature remains fully operational and can still be configured through the CLI.

Once applied, the GUI navigation menu is refreshed to reflect the updated visibility settings.

After making and saving changes to the feature visibility list, the system automatically logs out the current session. You must log in again to continue working.

The features available in the Feature Visibility page are grouped into three categories: System, Application Delivery, and Security/Additional Feature. These categories help administrators locate and manage GUI options more efficiently, especially in complex environments.

Some features are visible by default to support common deployment scenarios. Others can be enabled as needed, based on the requirements of the current configuration.

The following features are visible by default:

• Decompression

• Firewall

• Web Vulnerability Scanner

System	Application Delivery	Security/Additional Feature
QoS	Link Load Balance	ZTNA
WCCP	Clone Pool	AD FS Proxy
SSL-FP	Schedule Pool	Firewall
Schedule Group	Decompression	Web Vulnerability Scanner
FortiView->Link LB	Captcha	Web Anti-Defacement
Debug		JSON and XML Protection
		API Gateway

Feature Visibility View by Configuration Context

The features available in the Feature Visibility page vary depending on the system’s VDOM status, the current administrative context (Global vs. VDOM), and the VDOM mode (Independent Network or Shared Network).

• VDOM Disabled: A single set of features is available and managed system-wide through config system feature-visibility.

• VDOM Enabled – Independent Network Mode:

  • The Global context shows only Debug. This is configured through config system feature-visibility-global.

  • Each VDOM context (root or non-root) displays the full set of configurable features except Debug. This is configured through config system feature-visibility from the VDOM.

• VDOM Enabled – Shared Network Mode (ADOM Mode):

  • The Global context shows only Debug.

  • The root ADOM displays the full set of configurable features except Debug.

  • The non-root ADOM displays the same set of configurable features as the root ADOM, except QoS and Firewall.

Configuration Context	System	Application Delivery	Security/Additional Feature
VDOM Disabled	QoS, WCCP, SSL-FP, Schedule Group, FortiView→Link LB, Debug	Link Load Balance, Clone Pool, Schedule Pool, Decompression, Captcha	ZTNA, AD FS Proxy, Firewall, Web Vulnerability Scanner, Web Anti-Defacement, JSON and XML Protection, API Gateway
VDOM Enabled – VDOM Mode – Global	Debug	(Not shown)	(Not shown)
VDOM Enabled – VDOM Mode – Root VDOM	QoS, WCCP, SSL-FP, Schedule Group, FortiView→Link LB	Link Load Balance, Clone Pool, Schedule Pool, Decompression, Captcha	ZTNA, AD FS Proxy, Firewall, Web Vulnerability Scanner, Web Anti-Defacement, JSON and XML Protection, API Gateway
VDOM Enabled – VDOM Mode – Non-root VDOM	(Same as Root VDOM)	(Same as Root VDOM)	(Same as Root VDOM)
VDOM Enabled – ADOM Mode – Global	Debug	(Not shown)	(Not shown)
VDOM Enabled – ADOM Mode – Root ADOM	QoS, WCCP, SSL-FP, Schedule Group, FortiView->Link LB	Link Load Balance, Clone Pool, Schedule Pool, Decompression, Captcha	ZTNA, AD FS Proxy, Firewall, Web Vulnerability Scanner, Web Anti-Defacement, JSON and XML Protection, API Gateway
VDOM Enabled – ADOM Mode – Non-root ADOM	WCCP, SSL-FP, Schedule Group, FortiView->Link LB	(Same as Root ADOM)	ZTNA, AD FS Proxy, Web Vulnerability Scanner, Web Anti-Defacement, JSON and XML Protection, API Gateway

Before you begin:

• You must have read-write permission to system settings.

Syntax

VDOM Disabled

config system feature-visibility
  set API_gateway {enable|disable}
  set ad-fs-proxy {enable|disable}
  set captcha {enable|disable}
  set clone-pool {enable|disable}
  set debug {enable|disable}
  set decompression {enable|disable}
  set firewall {enable|disable}
  set json_protection {enable|disable}
  set llb {enable|disable}
  set llb_list {enable|disable}
  set qos {enable|disable}
  set schedule-pool {enable|disable}
  set schedule_group {enable|disable}
  set ssl-fp-resources {enable|disable}
  set wad_profile {enable|disable}
  set wccp {enable|disable}
  set web_vulnerability_scanner {enable|disable}
  set xml_protection {enable|disable}
  set ztna {enable|disable}
end

VDOM Enabled

Global context (requires config global):

config global
config system feature-visibility-global
  set debug {enable|disable}
end

VDOM context (requires entering a specific VDOM):

config vdom
  edit <vdom_name>
  config system feature-visibility
    set API_gateway {enable|disable}
    set ad-fs-proxy {enable|disable}
    set captcha {enable|disable}
    set clone-pool {enable|disable}
    set decompression {enable|disable}
    set firewall {enable|disable}
    set json_protection {enable|disable}
    set llb {enable|disable}
    set llb_list {enable|disable}
    set qos {enable|disable}
    set schedule-pool {enable|disable}
    set schedule_group {enable|disable}
    set ssl-fp-resources {enable|disable}
    set wad_profile {enable|disable}
    set wccp {enable|disable}
    set web_vulnerability_scanner {enable|disable}
    set xml_protection {enable|disable}
    set ztna {enable|disable}
  next
end

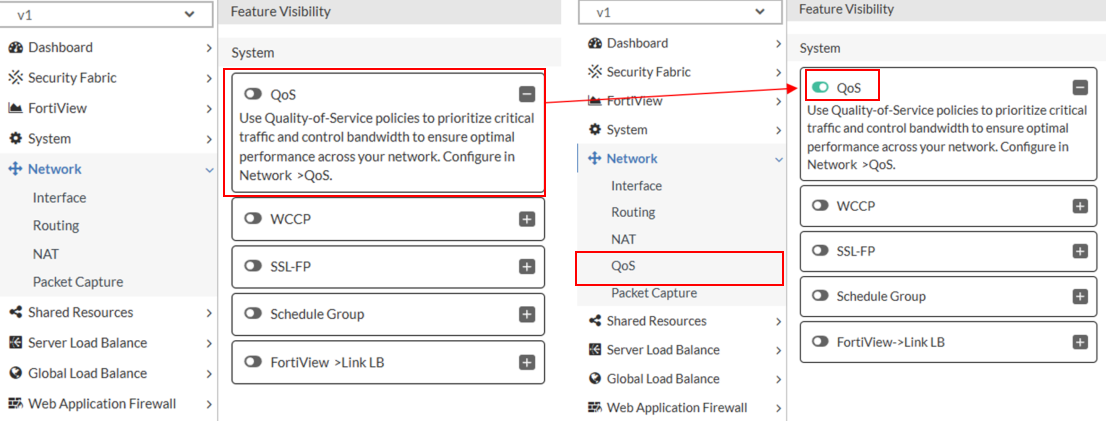

Example

config vdom
  edit v1
  config system feature-visibility-global
    set qos enable
  next
end
