IPsec monitor

The IPsec monitor displays all connected Site to Site VPN, Dial-up VPNs, and ADVPN shortcut tunnel information. You can use the monitor to bring a phase 2 tunnel up or down or disconnect dial-up users. A notification appears in the monitor when users have not enabled two-factor authentication.

To view the IPsec monitor in the GUI:

1. Go to Dashboard > Network.

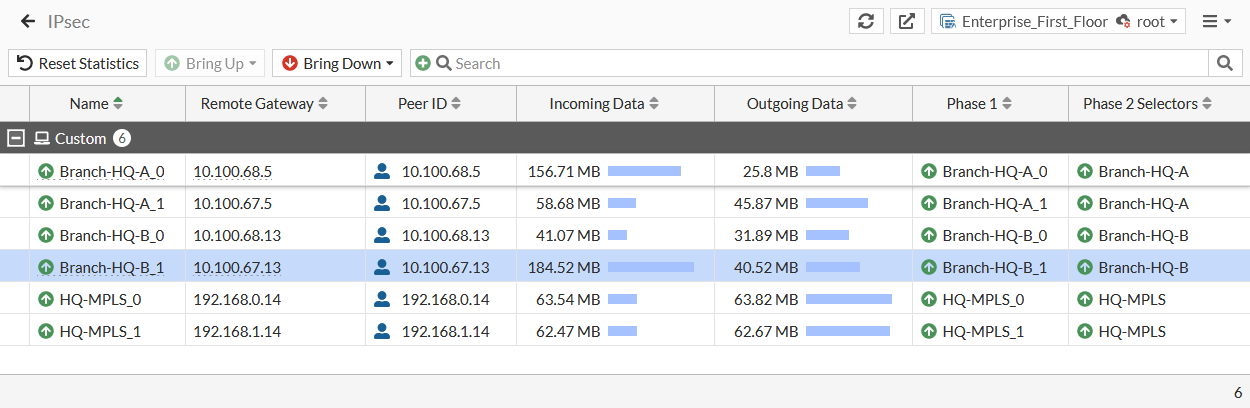

2. Hover over the IPsec widget, and click Expand to Full Screen. A warning appears when an unauthenticated user is detected.

   To filter or configure a column in the table, hover over the column heading and click the Filter/Configure Column button.

3. Hover over a record in the table. A tooltip displays the Phase 1 and Phase 2 interfaces. A warning appears next to a user who has not enabled two-factor authentication.

To reset statistics:

1. Select a tunnel in the table.

2. In the toolbar, click Reset Statistics or right-click the tunnel, and click Reset Statistics. The Confirm dialog is displayed.

3. Click OK.

To bring a tunnel up:

1. Select a tunnel in the table.

2. Click Bring Up, or right-click the tunnel, and click Bring Up. The Confirm dialog is displayed.

3. Click OK.

To bring a tunnel down:

1. Select a tunnel in the table.

2. Click Bring Down, or right-click the tunnel, and click Bring Down. The Confirm dialog is displayed.

3. Click OK.

To locate a tunnel on the VPN Map:

1. Select a tunnel in the table.
2. Click Locate on VPN Map, or right-click the tunnel, and click Locate on VPN Map. The VPN Location Map is displayed.

To view the IPsec monitor in the CLI:

# diagnose vpn tunnel list

Sample output:

list all ipsec tunnel in vd 0
------------------------------------------------------
name=Branch-HQ-B_1 ver=2 serial=8 10.100.65.101:0->10.100.67.13:0 tun_id=10.0.11.2 tun_id6=::10.0.0.8 dst_mtu=1500 dpd-link=on weight=1
bound_if=7 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/74408 options[122a8]=npu rgwy-chg frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

parent=Branch-HQ-B index=1
proxyid_num=1 child_num=0 refcnt=5 ilast=0 olast=0 ad=s/1
stat: rxp=1000472 txp=869913 rxb=184682116 txb=40548952
dpd: mode=on-idle on=1 idle=60000ms retry=3 count=0 seqno=1
natt: mode=none draft=0 interval=0 remote_port=0
fec: egress=0 ingress=0
proxyid=Branch-HQ-B proto=0 sa=1 ref=6 serial=1 ads
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=20a03 type=00 soft=0 mtu=1438 expire=414/0B replaywin=2048
       seqno=1bcc esn=0 replaywin_lastseq=0000201a qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=1790/1800
  dec: spi=b4d54183 esp=aes key=16 6735d235de02f37d26809c0e8be44bbf
       ah=sha1 key=20 17261a0387d9c9a33a00a47bcf260fc59150535e
  enc: spi=28572715 esp=aes key=16 48b8a72ae69eee58699b43692ce1ccf1
       ah=sha1 key=20 3e7a219f4da33c785302ae7b935a6c15c4cc2a2a
  dec:pkts/bytes=16434/3317744, enc:pkts/bytes=14230/1299224
  npu_flag=00 npu_rgwy=10.100.67.13 npu_lgwy=10.100.65.101 npu_selid=3 dec_npuid=0 enc_npuid=0
------------------------------------------------------
name=Branch-HQ-A ver=2 serial=1 10.100.64.101:0->0.0.0.0:0 tun_id=10.0.0.1 tun_id6=::10.0.0.1 dst_mtu=0 dpd-link=on weight=1
bound_if=3 lgwy=static/1 tun=intf mode=dialup/2 encap=none/552 options[0228]=npu frag-rfc  role=primary accept_traffic=1 overlay_id=0

proxyid_num=0 child_num=2 refcnt=4 ilast=43124593 olast=43124593 ad=/0
stat: rxp=1860386 txp=1598633 rxb=215561858 txb=71724716
dpd: mode=on-idle on=0 idle=60000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
fec: egress=0 ingress=0
run_tally=0
------------------------------------------------------
name=Branch-HQ-B ver=2 serial=2 10.100.65.101:0->0.0.0.0:0 tun_id=10.0.0.2 tun_id6=::10.0.0.2 dst_mtu=0 dpd-link=on weight=1
...
