Dynamic SNAT

Dynamic SNAT maps the private IP addresses to the first available public address from a pool of addresses. In the FortiGate firewall, this can be done by using IP pools. IP pools is a mechanism that allows sessions leaving the FortiGate firewall to use NAT. An IP pool defines a single IP address or a range of IP addresses to be used as the source address for the duration of the session. These assigned addresses are used instead of the IP address assigned to that FortiGate interface.

IP pool types

FortiGate uses four types of IPv4 IP pools. This topic focuses on some of the differences between them.

Overload

This type of IP pool is similar to static SNAT mode. We need to define an external IP range that contains one or more IP addresses. When there is only one IP address it is almost the same as static SNAT, the outgoing interface address is used. When it contains multiple IP addresses, it is equivalent to an extended mode of static SNAT.

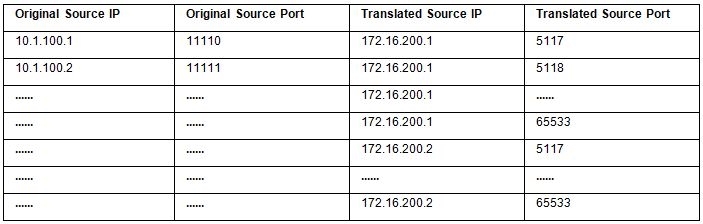

For instance, if we define an overload type IP pool with two external IP addresses (172.16.200.1—172.16.200.2), since there are 60,416 available port numbers per IP, this IP pool can handle 60,416*2 internal IP addresses to the same service, where a service is defined by a specific protocol, destination IP address, and destination port.

The mapped IP address can be calculated from the source IP address. The index number of the address in the pool is the remainder of the source IP address, in decimal, divided by the number addresses in the pool.

To calculate the decimal value of the source IP address, either use an online calculator, or use the following equation: a.b.c.d = a * (256)3 + b * (256)2 + c * (256) + d For example: 192.168.0.1 = 192 * (256)3 + 168 * (256)2 + 0 * (256) + 1 = 3232235521

If there is one IP pool, where:

• P₁ = the first address in the IP pool

• R₁ = the number of IP addresses in the IP pool

• X = the source IP address as a decimal number

• Y = the mapped IP address

Then the equation to determine the mapped address is:

Y = P₁ + X mod R₁

For example:

IP pool	Source IP address
172.26.73.20 to 172.26.73.90	192.168.1.200

1. Convert the source IP address to a decimal number:

   192 * (256)³ + 168 * (256)² + 1 * (256) + 200 = 3232235976

2. Determine the number of IP addresses in the pool:

   172.26.73.90 - 172.26.73.20 = 71

3. Find the remainder of the source IP address divided by the number of addresses in the pool:

   3232235976 mod 71 = 26

4. Add the remainder to the first IP address in the pool:

   172.26.73.20 + 26 = 172.26.73.46

   So, the mapped IP address is 172.26.73.46.

If there are multiple IP pools, the calculation is similar to when there is only one pool.

If there are two IP pools, where:

• P₁ = the first address in the first IP pool

• P₂ = the first address in the second IP pool

• R₁ = the number of IP addresses in the first IP pool

• R₂ = the number of IP addresses in the second IP pool

• X = the source IP address as a decimal number

• Y = the mapped IP address

Then the equations to determine the mapped address are:

If X mod (R₁ + R₂) >= R₁, then Y = P₂ + X mod R₂

If X mod (R₁ + R₂) < R₁, then Y = P₁ + X mod R₁

For example:

IP pools	Source IP address
pool01: 172.26.73.20 to 172.26.73.90	192.168.1.200
pool02: 172.26.75.50 to 172.26.75.150

1. Convert the source IP address to a decimal number:

   192 * (256)³ + 168 * (256)² + 1 * (256) + 200 = 3232235976

2. Determine the total number of IP addresses in the pools:

   (172.26.73.90 - 172.26.73.20) + (172.26.75.50 - 172.26.75.150) = 71 + 101 = 172

3. Find the remainder of the source IP address divided by the number of addresses in the pools:

   3232235976 mod 172 = 108

4. The remainder is greater than the number of addresses in pool01, so the address is selected from pool02 and the remainder is recalculated based only on pool02:

   3232235976 mod 101 = 40

5. Add the new remainder to the first IP address in pool02:

   172.26.75.50 + 40 = 172.26.75.90

   So, the mapped IP address is 172.26.75.90.

One-to-one

This type of IP pool means that the internal IP address and the external (translated) IP address match one-to-one. The port address translation (PAT) is disabled when using this type of IP pool. For example, if we define a one-to-one type IP pool with two external IP addresses (172.16.200.1 - 172.16.200.2), this IP pool only can handle two internal IP addresses.

Fixed port range

For the overload and one-to-one IP pool types, we do not need to define the internal IP range. For the fixed port range type of IP pool, we can define both internal IP range and external IP range. Since each external IP address and the number of available port numbers is a specific number, if the number of internal IP addresses is also determined, we can calculate the port range for each address translation combination. So we call this type fixed port range. This type of IP pool is a type of port address translation (PAT).

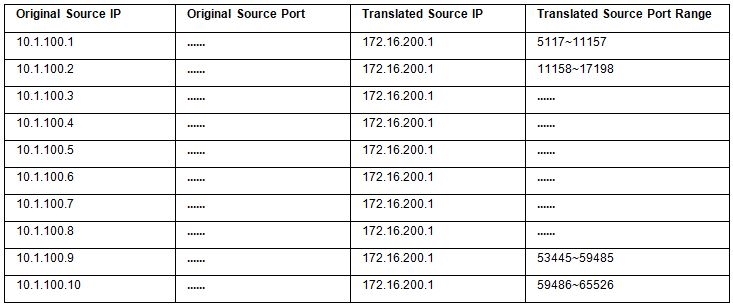

For instance, if we define one external IP address (172.16.200.1) and ten internal IP addresses (10.1.100.1-10.1.100.10), we have translation IP+Port combination like following table:

Port block allocation

This type of IP pool is also a type of port address translation (PAT). It gives users a more flexible way to control the way external IPs and ports are allocated. Users need to define Block Size/Block Per User and external IP range. Block Size means how many ports each Block contains. Block per User means how many blocks each user (internal IP) can use.

The following is a simple example:

• External IP Range: 172.16.200.1—172.16.200.1

• Block Size: 128

• Block Per User: 8

Result:

• Total-PBAs: 472 (60416/128)

• Maximum ports can be used per User (Internal IP Address): 1024 (128*8)

• How many Internal IP can be handled: 59 (60416/1024 or 472/8)

Interim logs can be configured for port block allocation (PBA) NAT logging. This enables continuous access to PBA event logs during an ongoing session, and provides comprehensive logging throughout a session's lifespan.

PBA event logs are generated periodically based on the configured time interval:

config firewall ippool
    edit pba-ippool
        set type port-block-allocation
        set pba-interim-log <integer>
    next
end

For example, when the PBA interim log interval is set to 600 seconds, event logs are obtained every ten minutes:

• Configure the PBA IP pool with a time interval:

  config firewall ippool
      edit "pba-ippool"
          set type port-block-allocation
          set startip 172.16.200.151
          set endip 172.16.200.151
          set block-size 64
          set num-blocks-per-user 1
          set pba-interim-log 600
      next
  end

• Check the event logs:

  # execute log display

  2 logs found.

  2 logs returned.

  1: date=2024-02-04 time=13:34:04 eventtime=1707082444264865326 tz="-0800" logid="0100022024" type="event" subtype="system" level="notice" vd="vdom1" logdesc="IP pool PBA interim log" action="ippool-interim" saddr="10.1.100.42" nat=172.16.200.151 portbegin=5117 portend=5180 poolname="pba-ippool" duration=1200 msg="IPpool interim"

  2: date=2024-02-04 time=13:24:03 eventtime=1707081844204865060 tz="-0800" logid="0100022024" type="event" subtype="system" level="notice" vd="vdom1" logdesc="IP pool PBA interim log" action="ippool-interim" saddr="10.1.100.42" nat=172.16.200.151 portbegin=5117 portend=5180 poolname="pba-ippool" duration=600 msg="IPpool interim"

Sample configuration

When an IP pool object is created with ARP Reply enabled, the object does not need to be referenced in any policies before a FortiGate interface starts responding to ARP requests for the addresses in the IP pool.

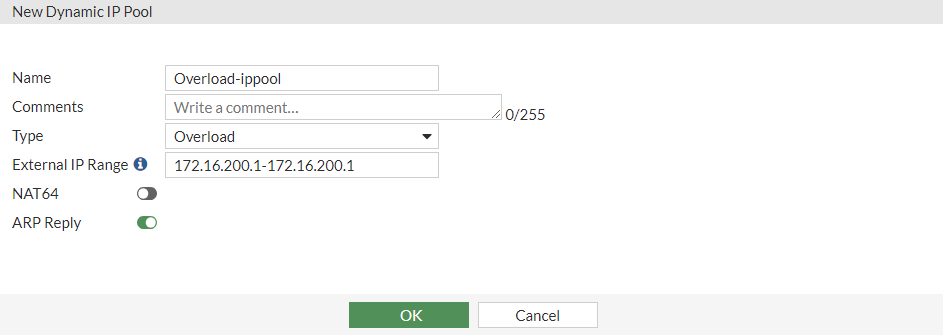

To configure overload IP pool in the GUI:

1. In Policy & Objects > IP Pools, click IP Pool.

2. Click Create new.

3. Set Type to Overload.

4. Enter the external IP range separated by a hyphen (172.16.200.1-172.16.200.1).



5. Click OK.

To configure overload IP pool in the CLI:

config firewall ippool
    edit "Overload-ippool"
        set startip 172.16.200.1
        set endip 172.16.200.1
    next
end

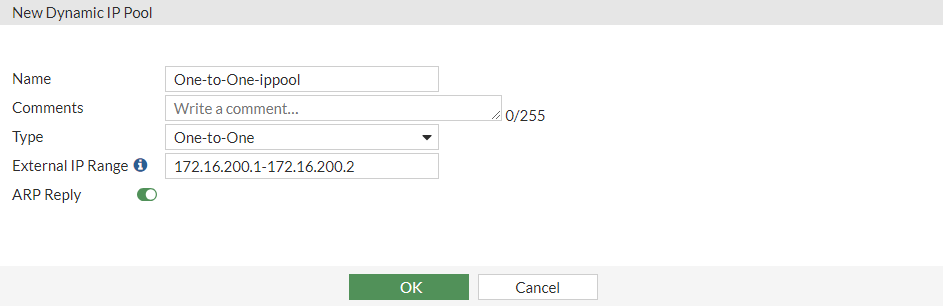

To configure one-to-one IP pool using the GUI:

1. In Policy & Objects > IP Pools, click IP Pool.

2. Click Create new.

3. Set Type to One-to-One.

4. Enter the external IP range separated by a hyphen (172.16.200.1-172.16.200.2).



5. Click OK.

To configure one-to-one IP pool in the CLI:

config firewall ippool
    edit "One-to-One-ippool"
        set type one-to-one
        set startip 172.16.200.1
        set endip 172.16.200.2
    next
end

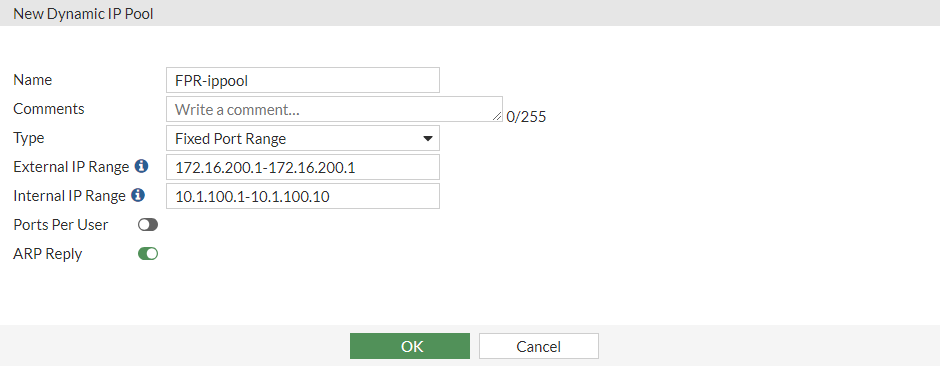

To configure fixed port range IP pool in the GUI:

1. In Policy & Objects > IP Pools, click IP Pool.

2. Click Create new.

3. Set Type to Fixed Port Range.

4. Enter the external IP range separated by a hyphen 172.16.200.1-172.16.200.1).

5. Enter the internal IP range separated by a hyphen 10.1.100.1-10.1.100.10).



6. Click OK.

To configure fixed port range IP pool in the CLI:

config firewall ippool
    edit "FPR-ippool"
        set type fixed-port-range
        set startip 172.16.200.1
        set endip 172.16.200.1
        set source-startip 10.1.100.1
        set source-endip 10.1.100.10
   next
end

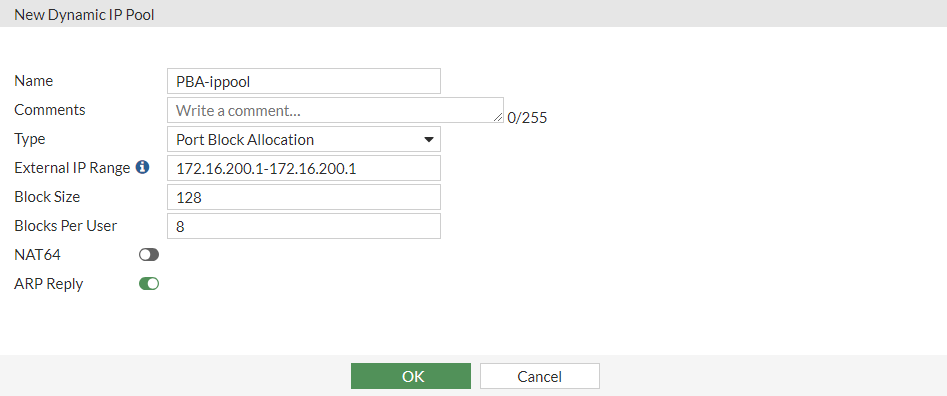

To configure port block allocation IP pool in the GUI:

1. In Policy & Objects > IP Pools, click IP Pool.

2. Click Create new.

3. Set Type to Port Block Allocation.

4. Enter the external IP range separated by a hyphen 172.16.200.1-172.16.200.1).



5. Click OK.

To configure port block allocation IP pool in the CLI:

config firewall ippool
    edit PBA-ippool
        set type port-block-allocation
        set startip 172.16.200.1
        set endip 172.16.200.1
        set block-size 128
        set num-blocks-per-user 8
    next
end

IP pools and VIPs as local IP addresses

IP pools and VIPs are considered local IP addresses if responding to ARP requests on these external IP addresses is enabled (set arp-reply enable, by default). In this case, the FortiGate is considered a destination for those IP addresses and can receive reply traffic at the application layer successfully.

However, as a side-effect, once an IP pool or VIP has been configured, even if it is never used in a firewall policy, the FortiGate considers it as a local address and will not forward traffic based on the routing table. Therefore, any unused IP pools or VIPs should be deleted to prevent any unexpected behavior.

For a history of behavior changes related to IP pools and VIPs, see Technical Tip: IP pool and virtual IP behavior changes in FortiOS 6.4, 7.0, 7.2, and 7.4.
