Display CORS content in explicit proxy NEW

Webpages can properly display Cross-Origin Resource Sharing (CORS) content in an explicit proxy environment when using session-based, cookie-enabled, and captive portal assisted authentication.

config authentication rule
    edit <name>
        set web-auth-cookie enable
        set cors-stateful {enable | disable}
        set cors-depth <integer>
    next
end

cors-stateful {enable | disable}	Enable/disable allowing CORS access (default = disable). This setting is only available when web-auth-cookie is enabled.
cors-depth <integer>	Set the depth to allow CORS access (1 - 8, default = 3). For example, when visiting domain A, the returned web page may refer the browser to a cross-origin domain B (depth of 1). When the browser visits domain B, the returned web content may further refer the browser to another cross-origin domain C (depth of 2).

Example

CORS access is enabled in this example. When a user access the Microsoft Sign in page using an explicit proxy, the page appears and the user can log in. This example assumes the web proxy and user group have already been configured, and that the proxy captive portal setting has been enabled on the appropriate interface.

To view CORS content in an explicit proxy environment:

1. Configure the authentication scheme:

   config authentication scheme
       edit "form"
           set method form
           set user-database "local-user-db"
       next
   end

2. Configure the authentication rule:

   config authentication rule
       edit "form"
           set srcaddr "all"
           set ip-based disable
           set active-auth-method "form"
           set web-auth-cookie enable
           set cors-stateful enable
           set cors-depth 3
       next
   end

3. Configure the captive portal:

   config authentication setting
       set captive-portal-type ip
    set captive-portal-ip 10.120..209
   end


4. Configure the policy:

   config firewall policy
       edit 1
           set type explicit-web
   	 set uuid 921737c8-d81a-51ee-76db-dcd160b8695d
           set dstintf "port9"
           set srcaddr "all"
           set dstaddr "all"
           set service "webproxy"
           set action accept
           set schedule "always"
   	 set explicit-web-proxy "web-proxy"
           set logtraffic all
   	 set logtraffic-start enable
   	 set log-http-transaction all
   	 set extended-log enable
           set groups "localgroup"
           set utm-status enable
           set ssl-ssh-profile "deep-custom"
           set av-profile "av"
       next
   end

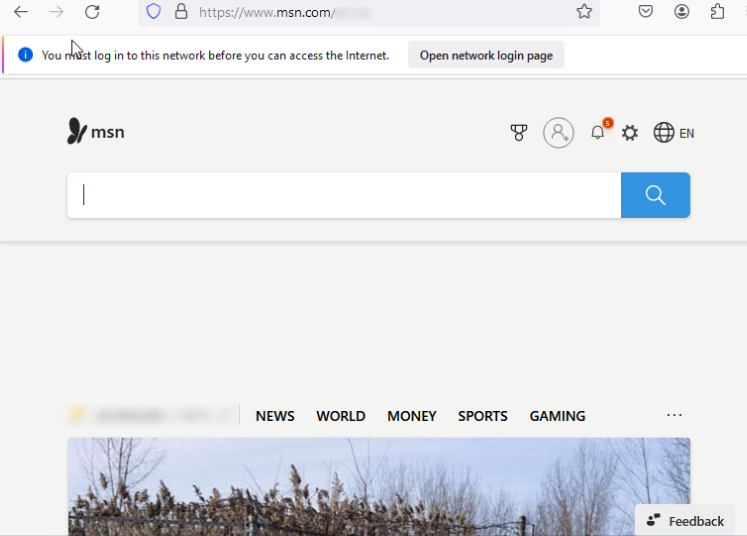

5. Get a user to access www.msn.com through the explicit web proxy. The website loads CORS content.

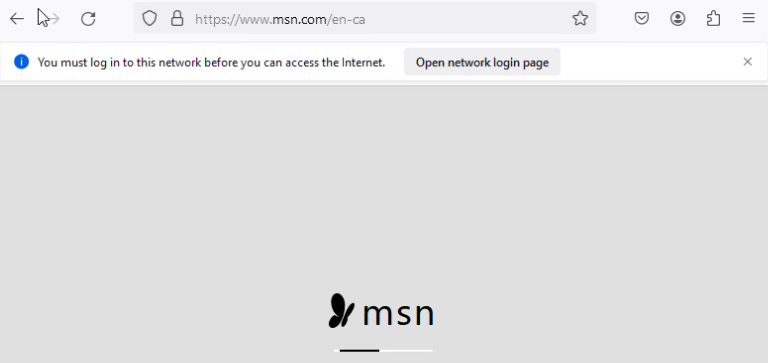

   If CORS access (cors-stateful) was disabled, the browser would display an incomplete page with CORS content hidden.
