ZTNA traffic forwarding proxy

For security-sensitive network services running on a host in cloud, partner site, or internal network, the host does not have any open ports to be detected by a network scanner or DDOS attacker. Instead, the host relies on a ZTNA service connector to facilitate outbounding connection to a ZTNA access proxy and connect to the network service. Below is the process for a client to access the network service:

1. The client makes a connection to the ZTNA edge and requests to access the registered network service.

2. The ZTNA edge performs ZTNA check and enforces ZTNA policy. If the request is allowed, it signals the intention through control connection.

3. The ZTNA service connector triggers a connection to the ZTNA edge and another connection to the server.

4. The ZTNA edge forwards the request through ZTNA service connector to the server.

FortiProxy as a forward proxy

This applies when a FortiProxy is directly between a client and a server.

To configure FortiProxy as the ZTNA traffic forwarding proxy:

config firewall policy

edit 15

set type ztna-proxy

set uuid c7207330-bc99-51ef-6ab2-be36a0752438

set srcintf "any"

set dstintf "any"

set srcaddr "all"

set dstaddr "all"

set action accept

set schedule "always"

set ztna-proxy "ztfp"

set logtraffic all

set logtraffic-start enable

set log-http-transaction enable

set extended-log enable

set ssl-ssh-profile "deep-inspection"

next

end

config ztna traffic-forward-proxy

edit "ztfp"

set vip "vip1"

next

end

config firewall vip

edit "vip1"

set uuid 526803fa-bca3-51ef-6362-2d8a9bb7b6e4

set type access-proxy

set server-type https

set extip 10.121.1.209

set extintf "any"

set extport 8443

set ssl-certificate "Fortinet_SSL"

next

end

Example ZTNA log the FortiProxy:

date=2024-12-17 time=11:04:32 eventtime=1734462272753347831 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.121.1.27 srcport=55783 srcintf="port5" srcintfrole="undefined" dstcountry="Reserved" srccountry="Reserved" dstip=172.18.20.80 dstport=22 dstintf="port1" dstintfrole="undefined" sessionid=1392251262 service="SSH" proxyapptype="http" proto=6 action="accept" policyid=15 policytype="proxy-policy" poluuid="c7207330-bc99-51ef-6ab2-be36a0752438" policyname="test1" clientip=10.121.1.27 appcat="unscanned" duration=25 gatewayid=1 vip="vip1" clientdevicemanageable="unknown" clientcert="no" wanin=4738 rcvdbyte=4738 wanout=3540 lanin=4417 sentbyte=4417 lanout=6662 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example forward traffic log on the FortiProxy:

date=2024-12-17 time=11:04:07 eventtime=1734462247388211699 tz="-0800" logid="0000000015" type="traffic" subtype="forward" level="notice" vd="root" srcip=10.121.1.27 srcport=55783 srcintf="port5" srcintfrole="undefined" dstip=172.18.20.80 clientip=10.121.1.27 dstport=22 dstintf="port1" dstintfrole="undefined" srccountry="Reserved" dstcountry="Reserved" sessionid=1392251262 proto=6 action="start" policyid=15 policytype="policy" poluuid="c7207330-bc99-51ef-6ab2-be36a0752438" policyname="test1" service="SSH" trandisp="noop" url="https://10.121.1.209/tcp?address=172.18.20.80&port=22&tls=1" agent="Forticlient" appcat="unscanned" duration=0 sentbyte=0 rcvdbyte=0 sentpkt=0 rcvdpkt=0 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

FortiProxy as proxy to a service connector

To configure FortiProxy as the proxy to a service connector:

1. Configure the first FortiProxy (209 in this example) as follows:

   config firewall policy

   edit 15

   set type ztna-proxy

   set name "test2"

   set uuid c7207330-bc99-51ef-6ab2-be36a0752438

   set srcintf "any"

   set dstintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set ztna-proxy "fwdfpx208"

   set logtraffic all

   set logtraffic-start enable

   set log-http-transaction enable

   set extended-log enable

   set ssl-ssh-profile "deep-inspection"

   next

   end

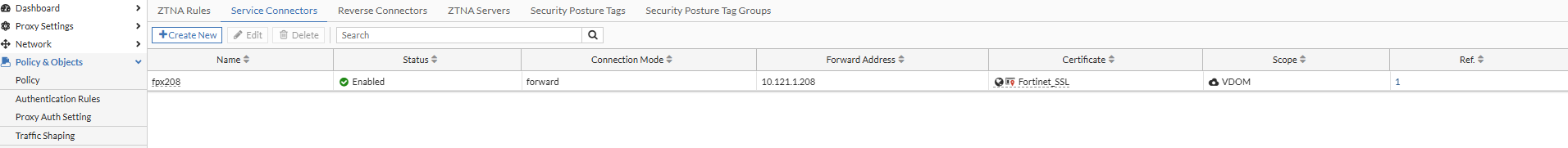

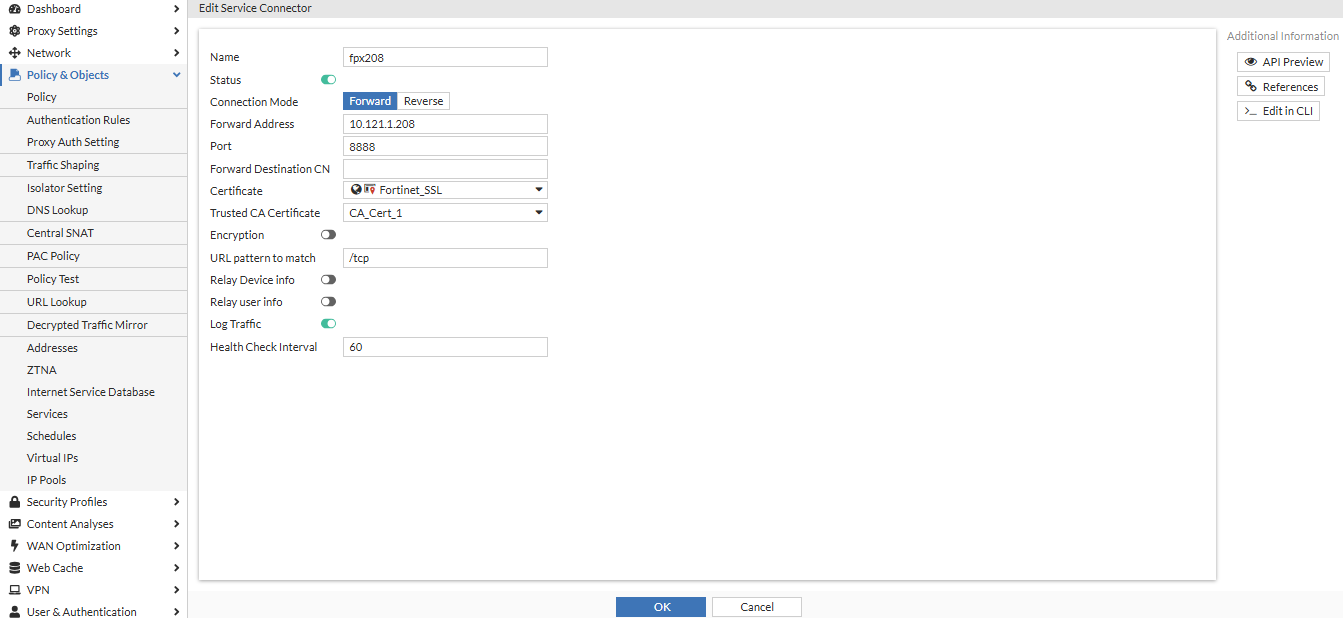

   config ztna service-connector

   edit "fpx208"

   set connection-mode forward

   set forward-address "10.121.1.208"

   set forward-port 8888

   set certificate "Fortinet_SSL"

   set trusted-ca "CA_Cert_1"

   next

   end

   config ztna traffic-forward-proxy

   edit "fwdfpx208"

   config url-route

   edit "for208"

   set service-connector "fpx208"

   next

   end

   set vip "vip2"

   next

   end

   config firewall vip

   edit "vip2"

   set uuid 21beb26e-bca6-51ef-f49d-42e366afdab8

   set type access-proxy

   set server-type https

   set extip 10.121.1.209

   set extintf "any"

   set extport 8888

   set ssl-certificate "Fortinet_SSL"

   next

   end

2. Configure the second FortiProxy (208 in this example) as follows:

   config firewall policy

   edit 4

   set type ztna-proxy

   set name "test2"

   set uuid e7e77c9c-bca5-51ef-8cc3-275398e1d455

   set dstintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set ztna-proxy "1"

   set logtraffic all

   set logtraffic-start enable

   set log-http-transaction enable

   set extended-log enable

   set ssl-ssh-profile "deep-inspection"

   next

   end

   config ztna traffic-forward-proxy

   edit "1"

   set vip "vip208"

   next

   end

   config firewall vip

   edit "vip208"

   set uuid 869d9b74-bca5-51ef-34f6-343c7d20efe7

   set type access-proxy

   set server-type https

   set extip 10.121.1.208

   set extintf "any"

   set client-cert disable

   set extport 8888

   set ssl-certificate "208cert"

   next

   end

Example forward traffic log on first FortiProxy:

date=2024-12-19 time=09:51:00 eventtime=1734630659815265080 tz="-0800" logid="0000000015" type="traffic" subtype="forward" level="notice" vd="root" srcip=10.121.1.27 srcport=53062 srcintf="port5" srcintfrole="undefined" dstip=10.121.1.208 clientip=10.121.1.27 dstport=8888 dstintf="port5" dstintfrole="undefined" srccountry="Reserved" dstcountry="Reserved" sessionid=1679660394 proto=6 action="start" policyid=15 policytype="policy" poluuid="c7207330-bc99-51ef-6ab2-be36a0752438" policyname="test2" service="tcp/8888" trandisp="noop" url="https://10.121.1.209/tcp?address=172.18.20.84&port=22&tls=1" agent="Forticlient" appcat="unscanned" duration=0 sentbyte=0 rcvdbyte=0 sentpkt=0 rcvdpkt=0 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example ZTNA log on first FortiProxy:

date=2024-12-19 time=09:51:06 eventtime=1734630666432308571 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.121.1.27 srcport=53062 srcintf="port5" srcintfrole="undefined" dstcountry="Reserved" srccountry="Reserved" dstip=10.121.1.208 dstport=8888 dstintf="port5" dstintfrole="undefined" sessionid=1679660394 service="tcp/8888" proxyapptype="http" proto=6 action="accept" policyid=15 policytype="proxy-policy" poluuid="c7207330-bc99-51ef-6ab2-be36a0752438" policyname="test2" clientip=10.121.1.27 appcat="unscanned" duration=7 gatewayid=1 vip="vip2" clientdevicemanageable="manageable" clientcert="yes" wanin=0 rcvdbyte=0 wanout=0 lanin=3782 sentbyte=3782 lanout=3600 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example forward traffic log on second FortiProxy:

date=2024-12-19 time=09:51:00 eventtime=1734630660241936738 tz="-0800" logid="0000000015" type="traffic" subtype="forward" level="notice" vd="root" srcip=10.121.1.209 srcport=7844 srcintf="port3" srcintfrole="undefined" dstip=172.18.20.84 clientip=10.121.1.209 dstport=22 dstintf="port1" dstintfrole="undefined" srccountry="Reserved" dstcountry="Reserved" sessionid=582239958 proto=6 action="start" policyid=4 policytype="policy" poluuid="e7e77c9c-bca5-51ef-8cc3-275398e1d455" policyname="test2" service="SSH" trandisp="noop" url="https://10.121.1.208/tcp?address=172.18.20.84&port=22&tls=1" agent="Forticlient" appcat="unscanned" duration=0 sentbyte=0 rcvdbyte=0 sentpkt=0 rcvdpkt=0

Example ZTNA log on second FortiProxy:

date=2024-12-19 time=09:51:06 eventtime=1734630666285628785 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.121.1.209 srcport=7844 srcintf="port3" srcintfrole="undefined" dstcountry="Reserved" srccountry="Reserved" dstip=172.18.20.84 dstport=22 dstintf="port1" dstintfrole="undefined" sessionid=582239958 service="SSH" proxyapptype="http" proto=6 action="accept" policyid=4 policytype="proxy-policy" poluuid="e7e77c9c-bca5-51ef-8cc3-275398e1d455" policyname="test2" clientip=10.121.1.209 appcat="unscanned" duration=7 gatewayid=1 vip="vip208" clientdevicemanageable="unknown" clientcert="no" wanin=1650 rcvdbyte=1650 wanout=1772 lanin=2570 sentbyte=2570 lanout=3062

FortiProxy as reverse proxy to service connector

To configure FortiProxy as the reverse proxy to a service connector:

1. Configure the first FortiProxy (209 in this example) as follows:

   config firewall policy

   edit 16

   set type ztna-proxy

   set name "test3"

   set uuid c62496ca-be36-51ef-490c-4f2ee03279a9

   set srcintf "any"

   set dstintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set ztna-proxy "re208"

   set logtraffic all

   set logtraffic-start enable

   set log-http-transaction enable

   set extended-log enable

   next

   end

   config ztna traffic-forward-proxy

   edit "re208"

   config url-route

   edit "re208"

   set service-connector "rs1"

   next

   end

   set vip "vip3"

   next

   end

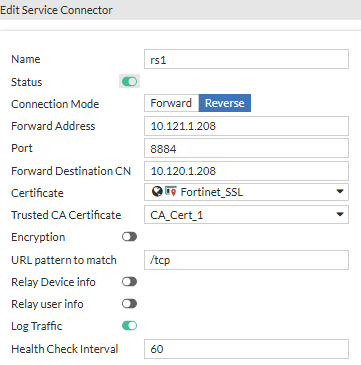

   config ztna service-connector

   edit "rs1"

   set connection-mode reverse

   set forward-address "10.121.1.208"

   set forward-port 8884

   set forward-destination-cn "10.120.1.208"

   set certificate "Fortinet_SSL"

   set trusted-ca "CA_Cert_1"

   next

   end

   config firewall vip

   edit "vip3"

   set uuid 022945e0-be36-51ef-6edf-96a8bfbb880c

   set type access-proxy

   set server-type https

   set extip 10.121.1.209

   set extintf "any"

   set extport 8844

   set ssl-certificate "Fortinet_SSL"

   next

   end

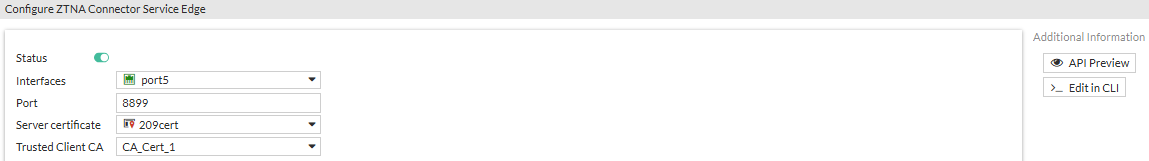

   config ztna connector-service-edge

   set status enable

   set interface "port5"

   set port 8899

   set server-cert "209cert"

   set trusted-client-ca "CA_Cert_1"

   end

2. Configure the second FortiProxy (208 in this example) as follows:

   config firewall policy

   edit 5

   set type ztna-proxy

   set name "test3"

   set uuid 647928bc-be38-51ef-5ae5-b0b34c7f11df

   set srcintf "any"

   set dstintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set ztna-proxy "2"

   set logtraffic all

   set logtraffic-start enable

   set log-http-transaction enable

   set extended-log enable

   next

   end

   config ztna traffic-forward-proxy

   edit "2"

   set vip "vip2"

   next

   end

   config firewall vip

   edit "vip2"

   set uuid 992b5256-be38-51ef-56e6-a5c8c29c209e

   set type access-proxy

   set server-type https

   set extip 10.121.1.208

   set extintf "any"

   set client-cert disable

   set extport 8884

   set ssl-certificate "208cert"

   next

   end

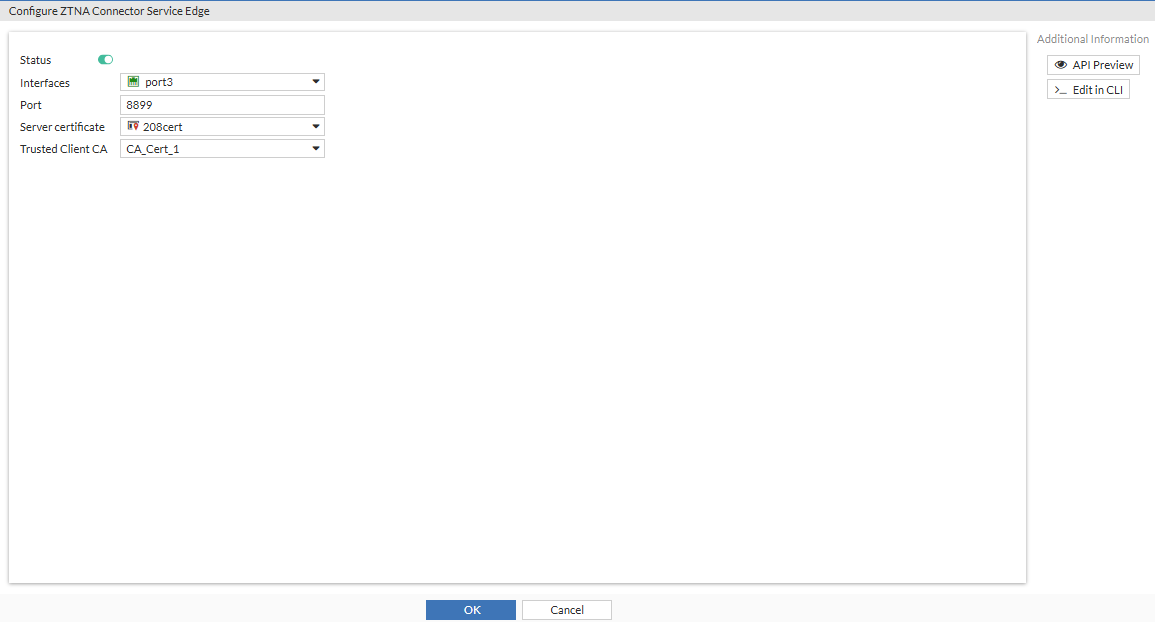

   config ztna connector-service-edge

   set status enable

   set interface "port3"

   set port 8899

   set server-cert "208cert"

   set trusted-client-ca "CA_Cert_1"

   end

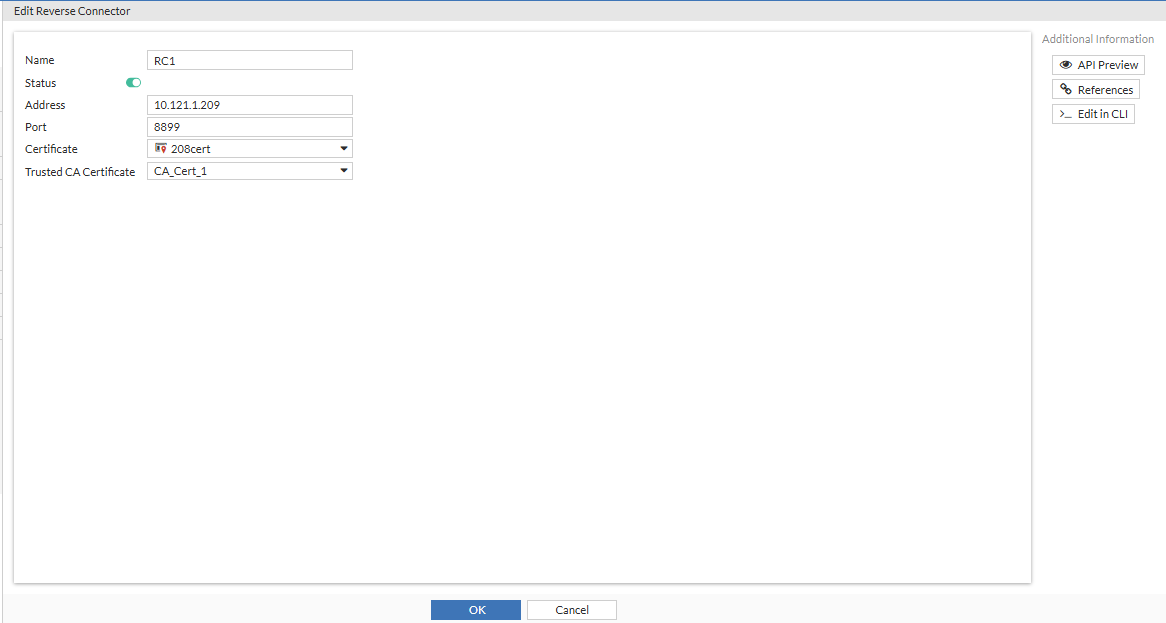

   config ztna reverse-connector

   edit "RC1"

   set address "10.121.1.209"

   set port 8899

   set certificate "208cert"

   set trusted-server-ca "CA_Cert_1"

   next

   end

Example forward traffic log on first FortiProxy:

date=2024-12-19 time=13:28:01 eventtime=1734643680738100796 tz="-0800" logid="0000000015" type="traffic" subtype="forward" level="notice" vd="root" srcip=10.121.1.27 srcport=55399 srcintf="port5" srcintfrole="undefined" dstip=10.121.1.208 clientip=10.121.1.27 dstport=8884 dstintf="port5" dstintfrole="undefined" srccountry="Reserved" dstcountry="Reserved" sessionid=1534640176 proto=6 action="start" policyid=16 policytype="policy" poluuid="c62496ca-be36-51ef-490c-4f2ee03279a9" policyname="test3" service="tcp/8884" trandisp="noop" url="https://10.121.1.209/tcp?address=172.18.20.83&port=22&tls=1" agent="Forticlient" appcat="unscanned" duration=0 sentbyte=0 rcvdbyte=0 sentpkt=0 rcvdpkt=0 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example ZTNA log on first FortiProxy:

date=2024-12-19 time=12:02:14 eventtime=1734638533879306863 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.121.1.27 srcport=54459 srcintf="port5" srcintfrole="undefined" dstcountry="Reserved" srccountry="Reserved" dstip=10.121.1.208 dstport=8884 dstintf="port5" dstintfrole="undefined" sessionid=1534640175 service="tcp/8884" proxyapptype="http" proto=6 action="accept" policyid=16 policytype="proxy-policy" poluuid="c62496ca-be36-51ef-490c-4f2ee03279a9" policyname="test3" clientip=10.121.1.27 appcat="unscanned" duration=121 gatewayid=1 vip="vip3" clientdevicemanageable="manageable" clientcert="yes" wanin=0 rcvdbyte=0 wanout=0 lanin=3782 sentbyte=3782 lanout=3514 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example forward traffic log on second FortiProxy:

date=2024-12-19 time=13:28:01 eventtime=1734643681000410543 tz="-0800" logid="0000000015" type="traffic" subtype="forward" level="notice" vd="root" srcip=10.121.1.208 srcport=38864 srcintf="unknown-0" srcintfrole="undefined" dstip=172.18.20.83 dstport=22 dstintf="port1" dstintfrole="undefined" srccountry="Reserved" dstcountry="Reserved" sessionid=1842818121 proto=6 action="start" policyid=5 policytype="policy" poluuid="647928bc-be38-51ef-5ae5-b0b34c7f11df" policyname="test3" service="SSH" trandisp="noop" url="https://10.121.1.208/tcp?address=172.18.20.83&port=22&tls=1" agent="Forticlient" appcat="unscanned" duration=0 sentbyte=0 rcvdbyte=0 sentpkt=0 rcvdpkt=0

FortiProxy as reverse proxy to service connector with relay info (authentication)

To configure FortiProxy as the reverse proxy to a service connector with authentication:

1. Configure the first FortiProxy (209 in this example) as follows:

   config firewall policy

   edit 17

   set type ztna-proxy

   set name "test4"

   set uuid 4cb311a2-be51-51ef-2ca9-e44aa30538be

   set srcintf "any"

   set dstintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set ztna-proxy "re208"

   set logtraffic all

   set logtraffic-start enable

   set log-http-transaction enable

   set extended-log enable

   set groups "ldap-grp"

   next

   end

   config ztna service-connector

   edit "rs1"

   set connection-mode reverse

   set forward-address "10.121.1.208"

   set forward-port 8884

   set forward-destination-cn "10.120.1.208"

   set certificate "Fortinet_SSL"

   set trusted-ca "CA_Cert_1"

   set relay-user-info enable

   relay-user

   next

   end

   config ztna traffic-forward-proxy

   edit "re208"

   config url-route

   edit "re208"

   set service-connector "rs1"

   next

   end

   set vip "vip3"

   next

   end

   config ztna connector-service-edge

   set status enable

   set interface "port5"

   set port 8899

   set server-cert "209cert"

   set trusted-client-ca "CA_Cert_1"

   end

   config firewall vip

   edit "vip3"

   set uuid 022945e0-be36-51ef-6edf-96a8bfbb880c

   set type access-proxy

   set server-type https

   set extip 10.121.1.209

   set extintf "any"

   set extport 8844

   set ssl-certificate "Fortinet_SSL"

   next

   end

   config authentication scheme

   edit "fac_ldap_scheme"

   set method basic

   set user-database "ldap"

   next

   end

   config authentication rule

   edit "ru-basic"

   set srcintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set active-auth-method " fac_ldap_scheme"

   next

   end

2. Configure the second FortiProxy (208 in this example) as follows:

   config firewall policy

   edit 6

   set type ztna-proxy

   set name "test4"

   set uuid 765dbc14-be51-51ef-c1d3-a20777201165

   set srcintf "any"

   set dstintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set action accept

   set schedule "always"

   set ztna-proxy "2"

   set logtraffic all

   set logtraffic-start enable

   set log-http-transaction enable

   set extended-log enable

   set groups "ldap-grp"

   next

   end

   config ztna reverse-connector

   edit "RC1"

   set address "10.121.1.209"

   set port 8899

   set certificate "208cert"

   set trusted-server-ca "CA_Cert_1"

   next

   end

   config ztna traffic-forward-proxy

   edit "2"

   set vip "vip2"

   next

   end

   config firewall vip

   edit "vip2"

   set uuid 992b5256-be38-51ef-56e6-a5c8c29c209e

   set type access-proxy

   set server-type https

   set extip 10.121.1.208

   set extintf "any"

   set client-cert disable

   set extport 8884

   set ssl-certificate "208cert"

   next

   end

   config authentication scheme

   edit "ztna"

   set method ztna-relay

   set user-database "ldap"

   next

   end

   config authentication rule

   edit "rule-relay"

   set srcintf "any"

   set srcaddr "all"

   set dstaddr "all"

   set sso-auth-method "ztna"

   next

   end

Example forward traffic log on first FortiProxy:

date=2025-02-12 time=14:48:02 eventtime=1739400481939063719 tz="-0800" logid="0000000015" type="traffic" subtype="forward" level="notice" vd="root" srcip=10.121.1.27 srcport=49436 srcintf="port5" srcintfrole="undefined" dstip=10.121.1.208 clientip=10.121.1.27 dstport=8884 dstintf="port5" dstintfrole="undefined" srccountry="Reserved" dstcountry="Reserved" sessionid=1368748332 proto=6 action="start" policyid=17 policytype="policy" poluuid="4cb311a2-be51-51ef-2ca9-e44aa30538be" policyname="test4" user="usera@qa.domaintest.com" group="ldap-grp" service="tcp/8884" trandisp="noop" url="https://10.121.1.209/tcp?address=172.18.20.83&port=22&tls=1" agent="Forticlient" appcat="unscanned" duration=0 sentbyte=0 rcvdbyte=0 sentpkt=0 rcvdpkt=0 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example ZTNA log on first FortiProxy:

date=2025-02-12 time=14:49:56 eventtime=1739400596457255371 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.121.1.27 srcport=49436 srcintf="port5" srcintfrole="undefined" dstcountry="Reserved" srccountry="Reserved" dstip=10.121.1.208 dstport=8884 dstintf="port5" dstintfrole="undefined" sessionid=1368748332 service="tcp/8884" proxyapptype="http" proto=6 action="accept" policyid=17 policytype="proxy-policy" poluuid="4cb311a2-be51-51ef-2ca9-e44aa30538be" policyname="test4" clientip=10.121.1.27 appcat="unscanned" duration=115 user="usera@qa.domaintest.com" group="ldap-grp" gatewayid=1 vip="vip3" clientdevicemanageable="manageable" clientcert="yes" wanin=0 rcvdbyte=0 wanout=0 lanin=5249 sentbyte=5249 lanout=5552 fctuid="70A5C5FABBE64A9B98B6DDA3FE8AC794" unauthuser="guodong" unauthusersource="forticlient" srcremote=207.102.138.19

Example forward traffic log on second FortiProxy:

date=2025-02-12 time=14:49:57 eventtime=1739400596385868699 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.121.1.208 srcport=12170 srcintf="unknown-0" srcintfrole="undefined" dstcountry="Reserved" srccountry="Reserved" dstip=172.18.20.83 dstport=22 dstintf="port1" dstintfrole="undefined" sessionid=2131368715 service="SSH" proxyapptype="http" proto=6 action="accept" policyid=6 policytype="proxy-policy" poluuid="765dbc14-be51-51ef-c1d3-a20777201165" policyname="test4" appcat="unscanned" duration=114 user="usera@qa.domaintest.com" group="ldap-grp" gatewayid=1 vip="vip2" clientdevicemanageable="unknown" clientcert="no" wanin=3341 rcvdbyte=3341 wanout=3036 lanin=0 sentbyte=0 lanout=0
