Creating the virtual machine

To create the virtual machine:

The easy way to create the virtual machine is to execute the fsa-kvm.sh script in shell. You can also install it manually. To do that:

1. Launch Virtual Machine Manager (virt-manager) on you KVM host server. The Virtual Machine Manager home page opens.



2. Select Create a new virtual machine from the toolbar.



3. Select Import existing disk image, then click Forward.
4. Enter the full path to extract the image.out.qcow2 file or click Browse.If you copied the file to /var/lib/libvirt/images, it will be shown on the right. If you saved it elsewhere on the server, select Browse Local to find it.
5. Click Forward.
6. Specify the amount of memory and the number of CPUs to allocated to this VM, then click Forward.

   A minimum of 8GB of memory and two CPUs are required for the VM. Fortinet recommends that the number of CPU cores be four more than the number of Windows VMs, and 3GB of RAM per Windows VM.

   1. Click Forward and set the name of your VM.
   2. Select Customize Configuration before install.
   3. Select the correct interface for the Network Selection field.

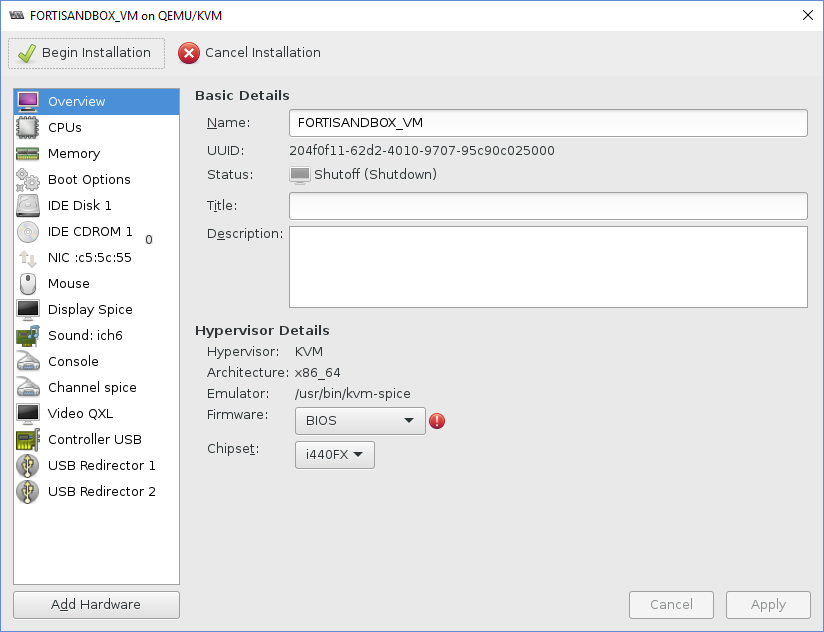

7. Click Finish. The Virtual Machine Manager opens.



   Before powering on your FortiSandbox VM you must configure the CPUs to copy the host configuration, and add a local hard drive of at least 200GB and at least two more network interfaces.

8. Select CPUs from the list > Copy host CPU Configuration > Apply.



9. Add a second hard drive:

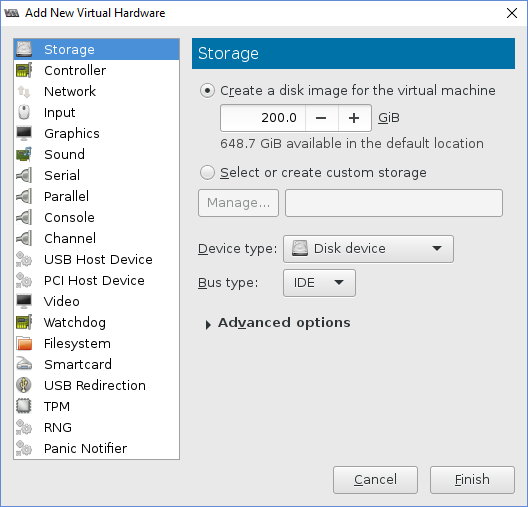

   1. Click Add Hardware > Storage.



   2. Enter 200 or a larger number in the disk size field, then click Finish. Fortinet recommends making the virtual disk 1TB or larger.

      The disk is created and added to the hardware list as IDE Disk 2.

10. Add more network interfaces:

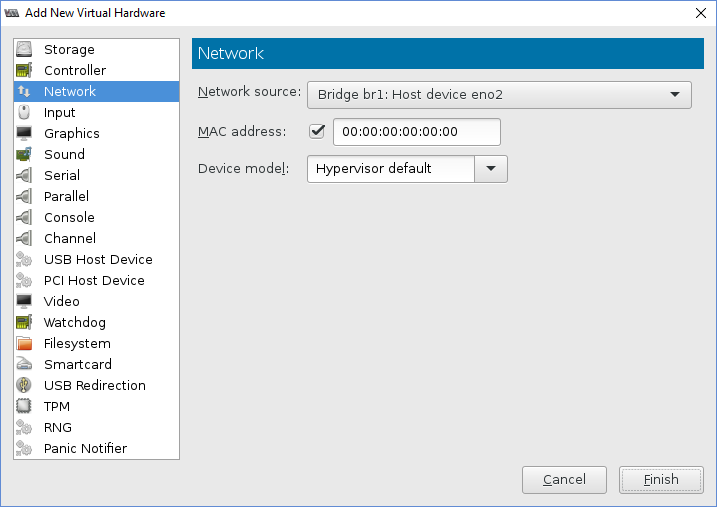

    1. Click Add Hardware > Network.



    2. Edit the settings as required, then click Finish to create the interface.
    3. Repeat these steps to create a third interface.

    FortiSandbox VM supports up to six network adapters. You can configure network adapters to connect to a virtual switch or to network adapters on the host computer.

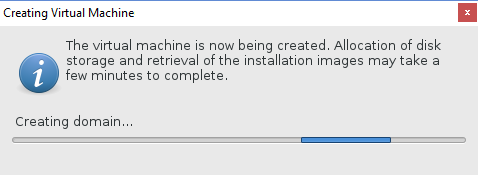

11. Click Begin Installation to create the VM.



    The FortiSandbox VM is created and started. See Configuring initial settings for information on configuring your FortiSandbox VM.
