Split-task VDOM mode

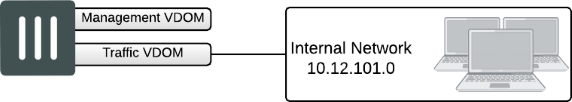

In split-task VDOM mode, the FortiGate has two VDOMs: the management VDOM (root) and the traffic VDOM (FG-traffic).

The management VDOM is used to manage the FortiGate, and cannot be used to process traffic.

The following GUI sections are available when in the management VDOM:

• The Status dashboard
• Security Fabric topology and settings (read-only, except for HTTP Service settings)
• Interface and static route configuration
• FortiClient configuration
• Replacement messages
• Certificates
• System events
• Log and email alert settings
• Threat weight definitions

The traffic VDOM provides separate security policies, and is used to process all network traffic.

The following GUI sections are available when in the traffic VDOM:

• The Status, Top Usage LAN/DMZ, and Security dashboards
• Security Fabric topology, settings (read-only, except for HTTP Service settings), and External Connectors (Endpoint/Identity connectors only)
• FortiView
• Interface configuration
• Packet capture
• SD-WAN, SD-WAN Rules, and Performance SLA
• Static and policy routes
• RIP, OSPF, BGP, and Multicast
• Replacement messages
• Feature visibility
• Tags
• Certificates
• Policies and objects
• Security profiles
• VPNs
• User and device authentication
• Wifi and switch controller
• Logging
• Monitoring

Split-task VDOM mode is not available on all FortiGate models. The Fortinet Security Fabric supports split-task VDOM mode.

Enable split-task VDOM mode

Split-task VDOM mode can be enabled in the GUI or CLI. Enabling it does not require a reboot, but does log you out of the FortiGate.

When split-task VDOM mode is enabled, all current management configuration is assigned to the root VDOM, and all non-management settings, such as firewall policies and security profiles, are deleted.

On FortiGate 90 series models and lower, VDOMs can only be enabled using the CLI.

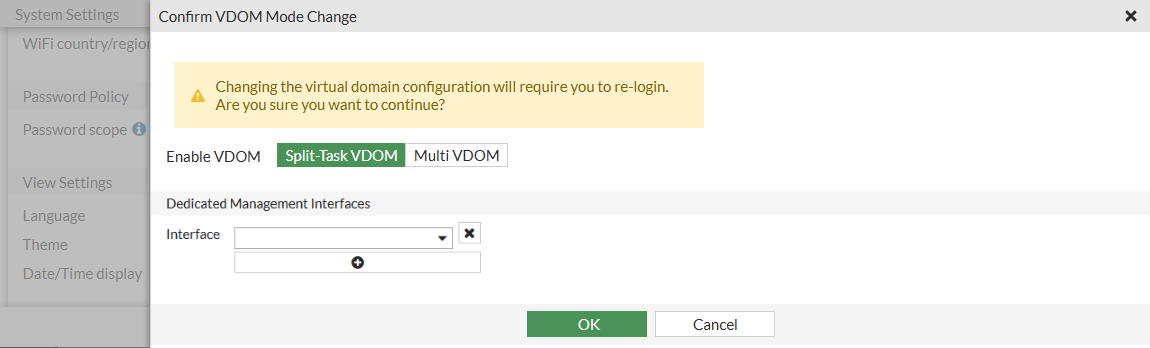

To enable split-task VDOM mode in the GUI:

1. On the FortiGate, go to System > Settings.
2. In the System Operation Settings section, enable Virtual Domains.



3. Select Split-Task VDOM for the VDOM mode.
4. Select a Dedicated Management Interface from the Interface list. This interface is used to access the management VDOM, and cannot be used in firewall policies.
5. Click OK.

To enable split-task VDOM mode with the CLI:

config system global
    set vdom-mode split-vdom
end
