Configure site-to-site VPN using FortiAI Example

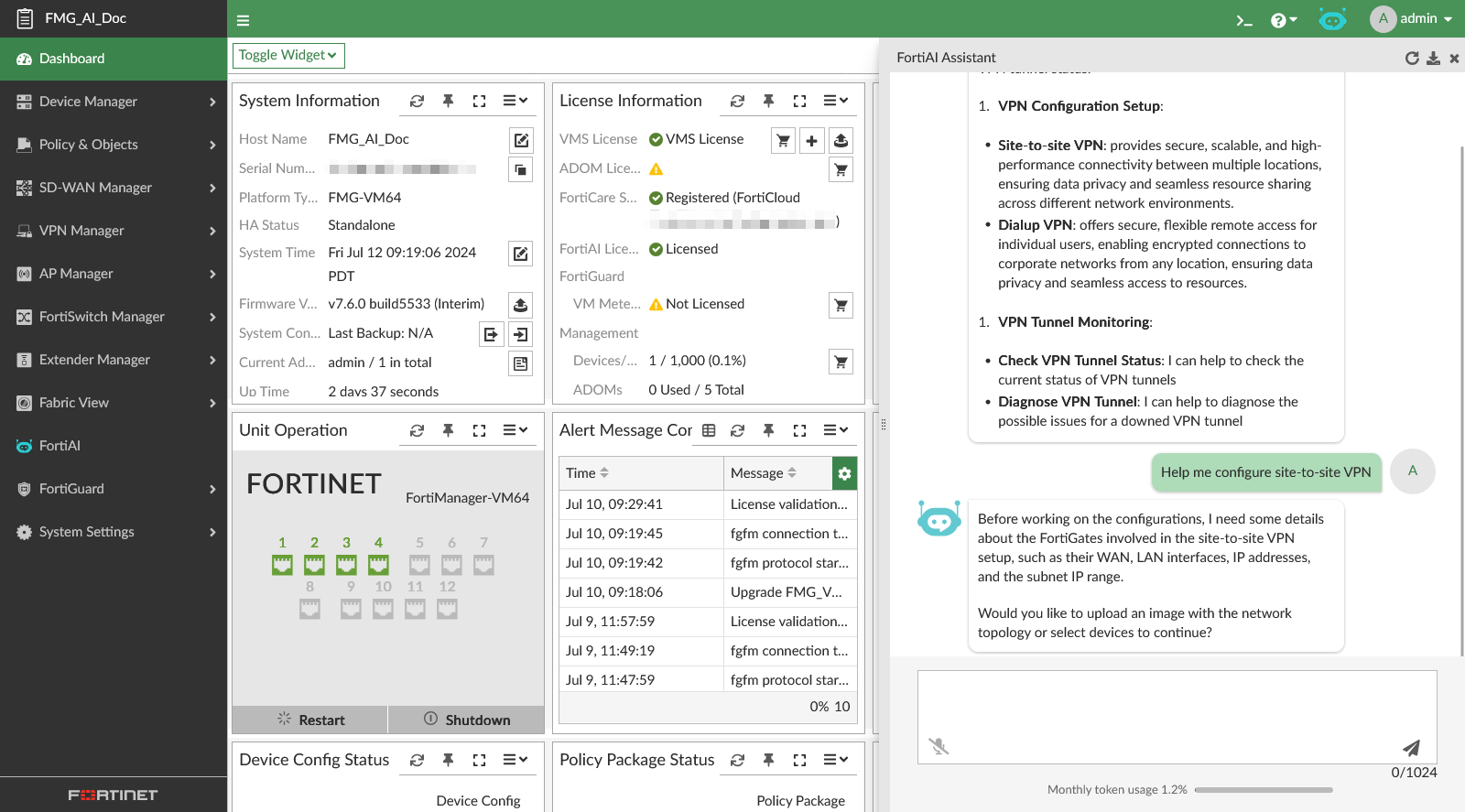

1. Ask FortiAI to help configure site-to-site VPN.
   FortiAI will prompt you with two choices in order to understand your network environment.

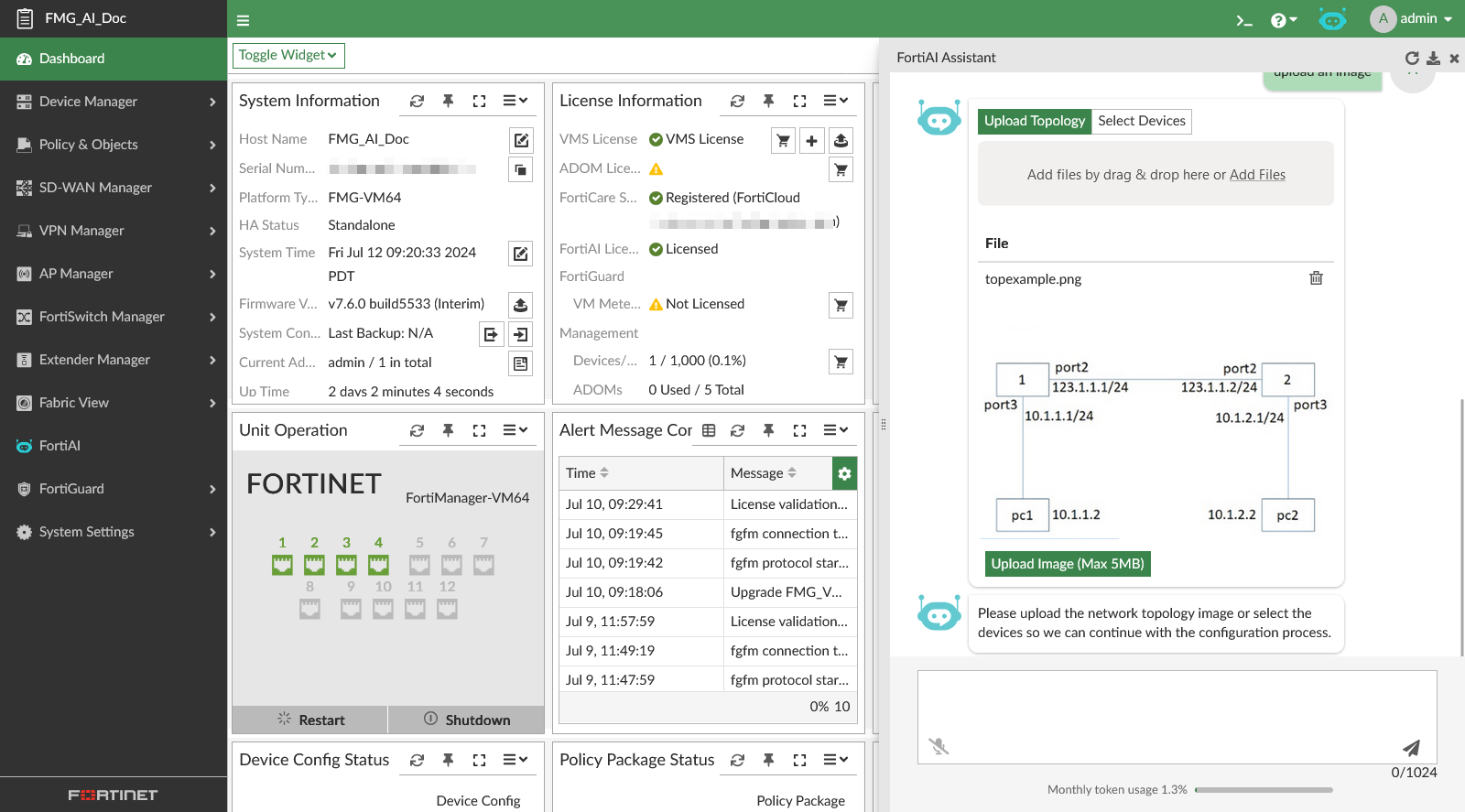

   1. Select upload an image, and FortiAI will provide a widget where you can upload an image of your topology. The maximum size of this file is 5MB.

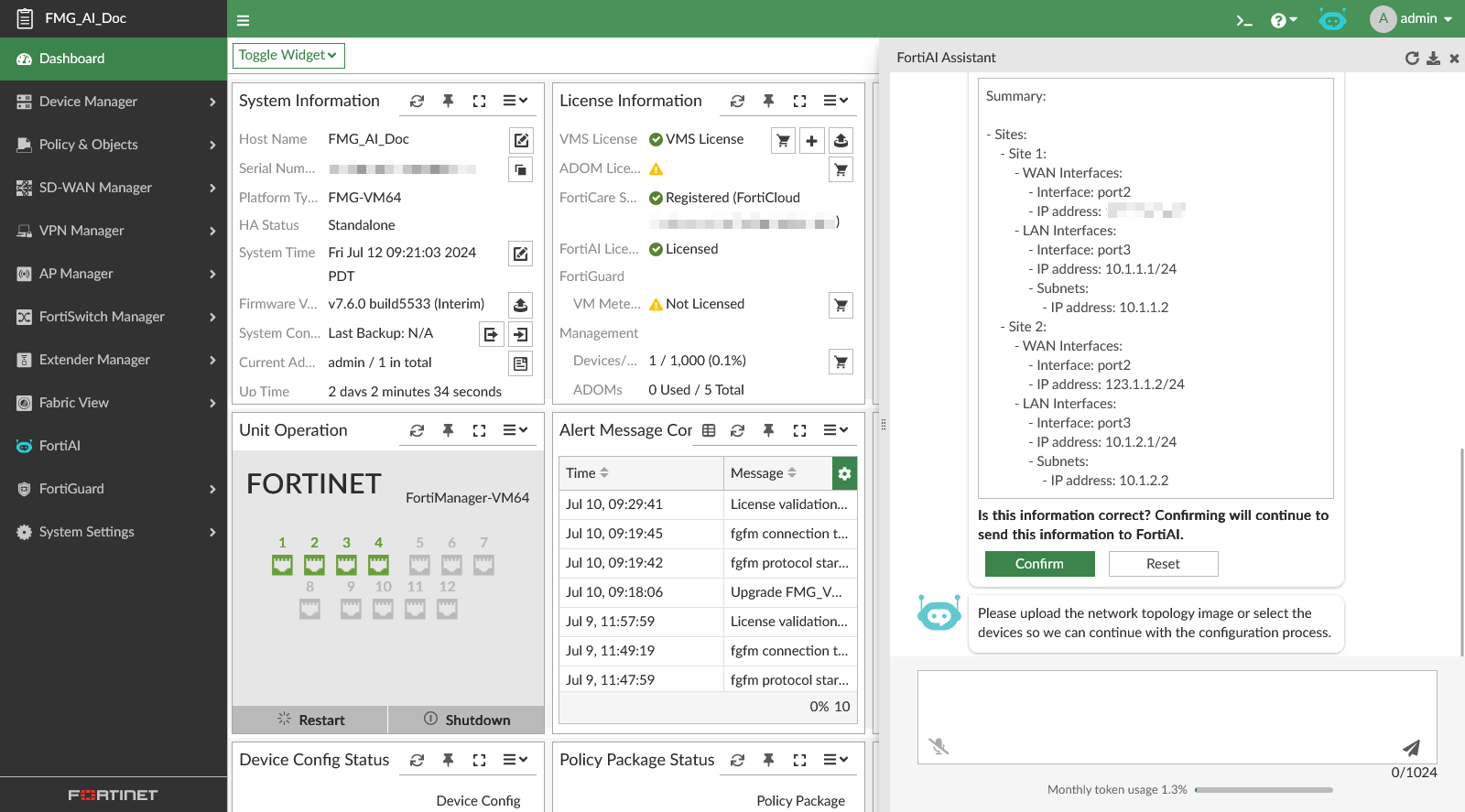

      1. FortiAI will prompt you with a summary of the network that you can review and confirm.

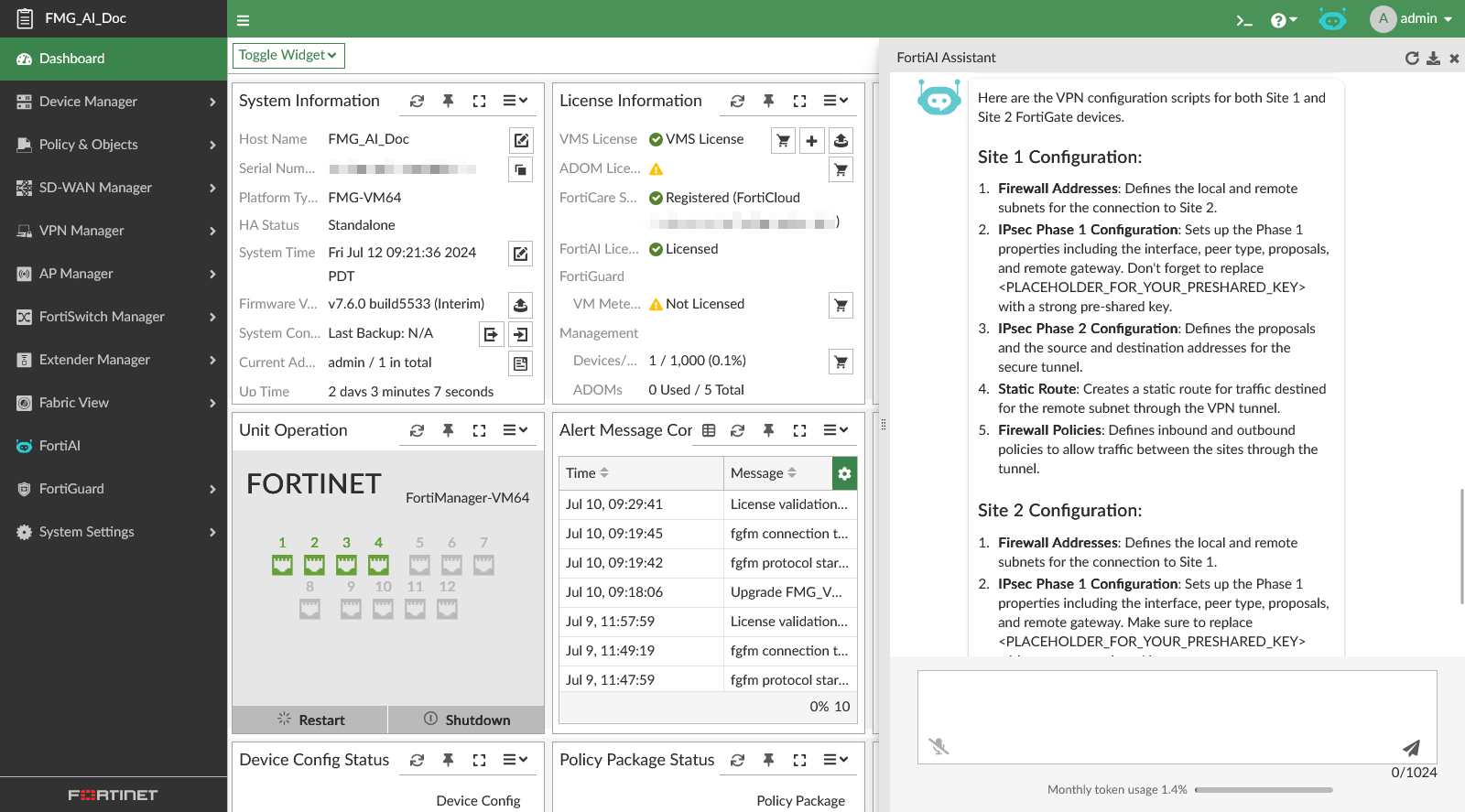

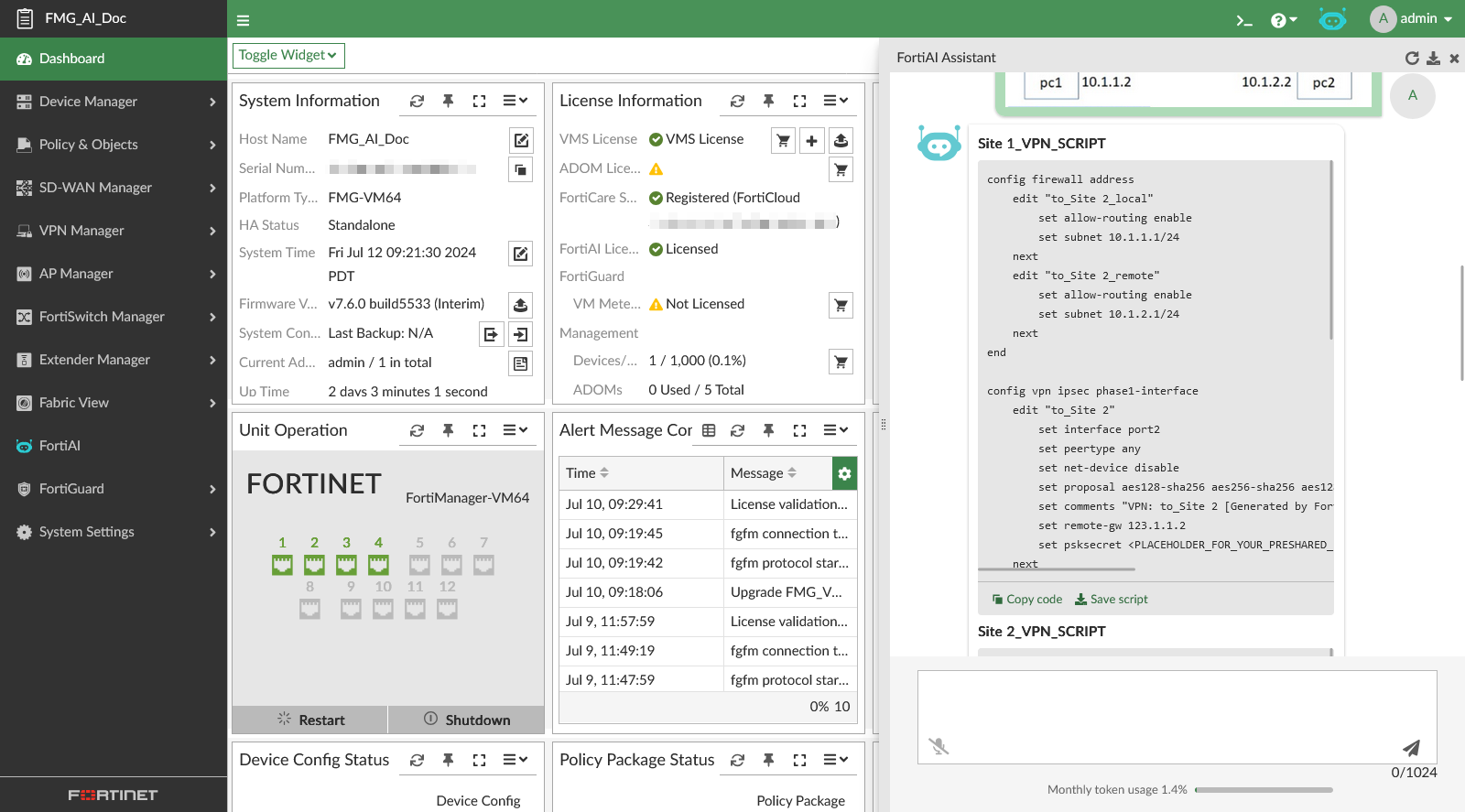

      2. FortiAI will generate the script and script explanation.



      3. Click Copy Code to copy the scripts to the clipboard.

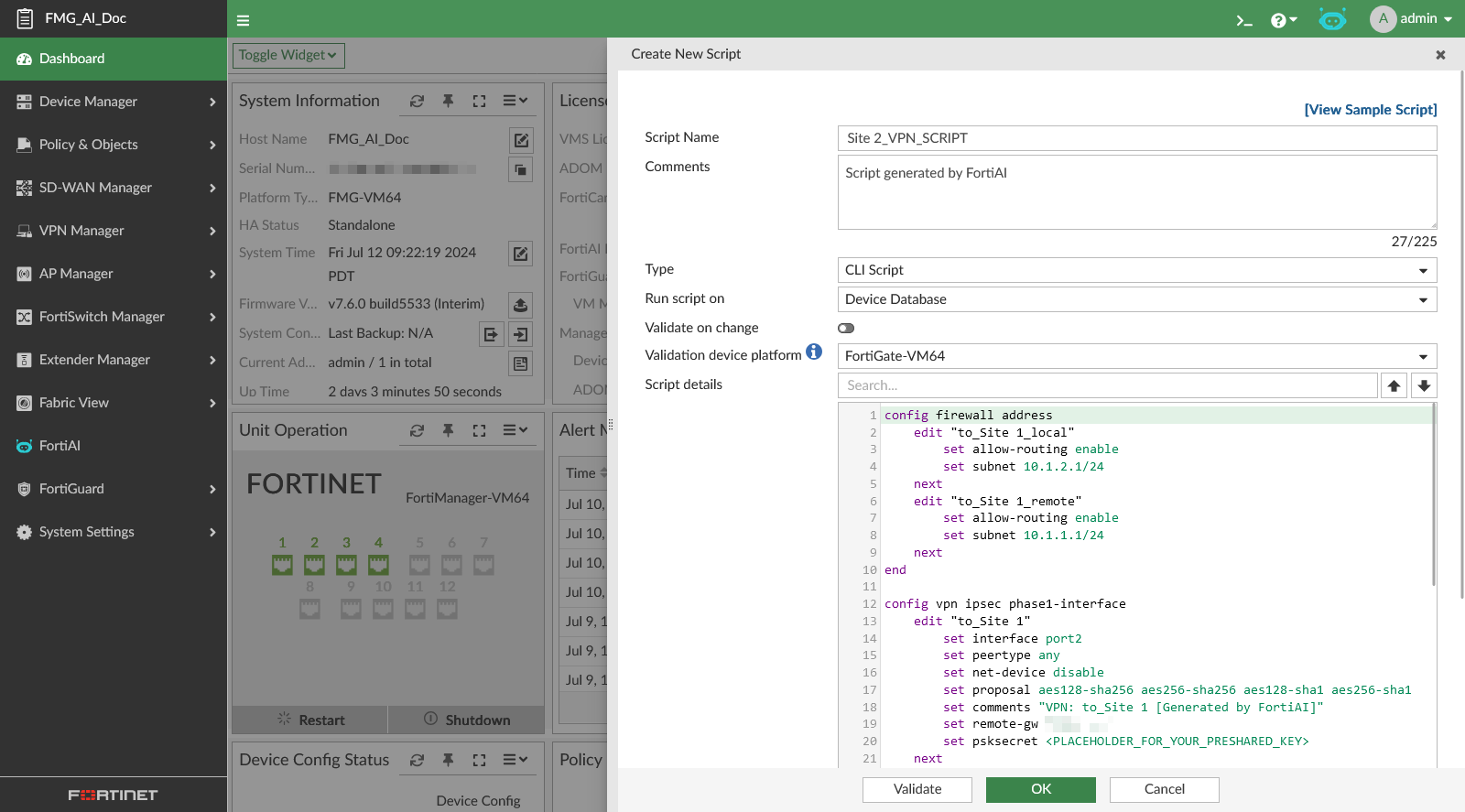

      4. Select Save Script to edit the generated response as a new script, with the script name and comments automatically filled in. The script is saved in Device Manager > Scripts. You must manually change your psksecret in the script.

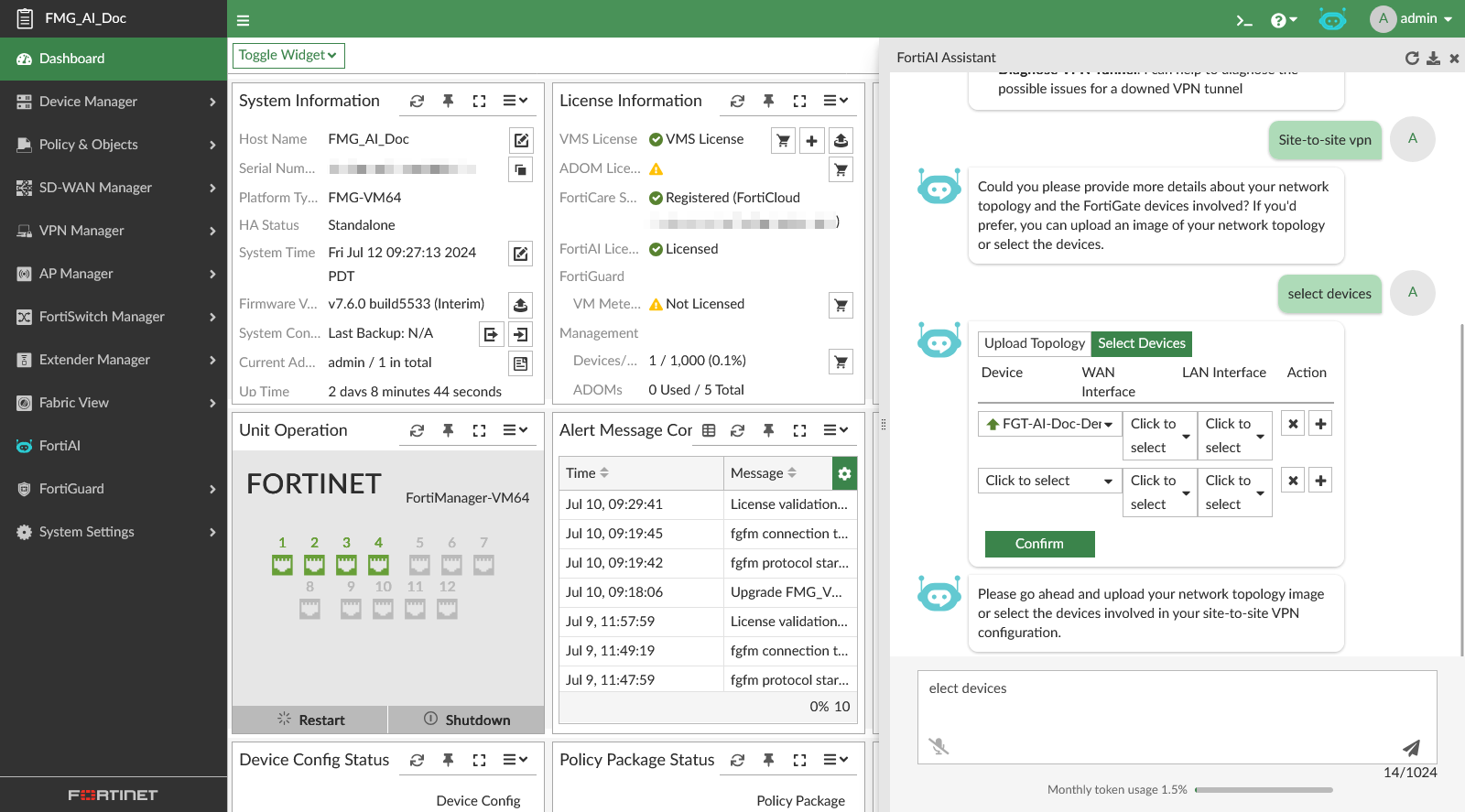

   2. Select Select Devices, and FortiAI will provide a widget where you can select the devices, WAN, and LAN interface, as well as actions to add or delete items in the list.


      1. Click Confirm when you have finished selecting your devices.

      2. FortiAI will generate the script and script explanation.
