Summary

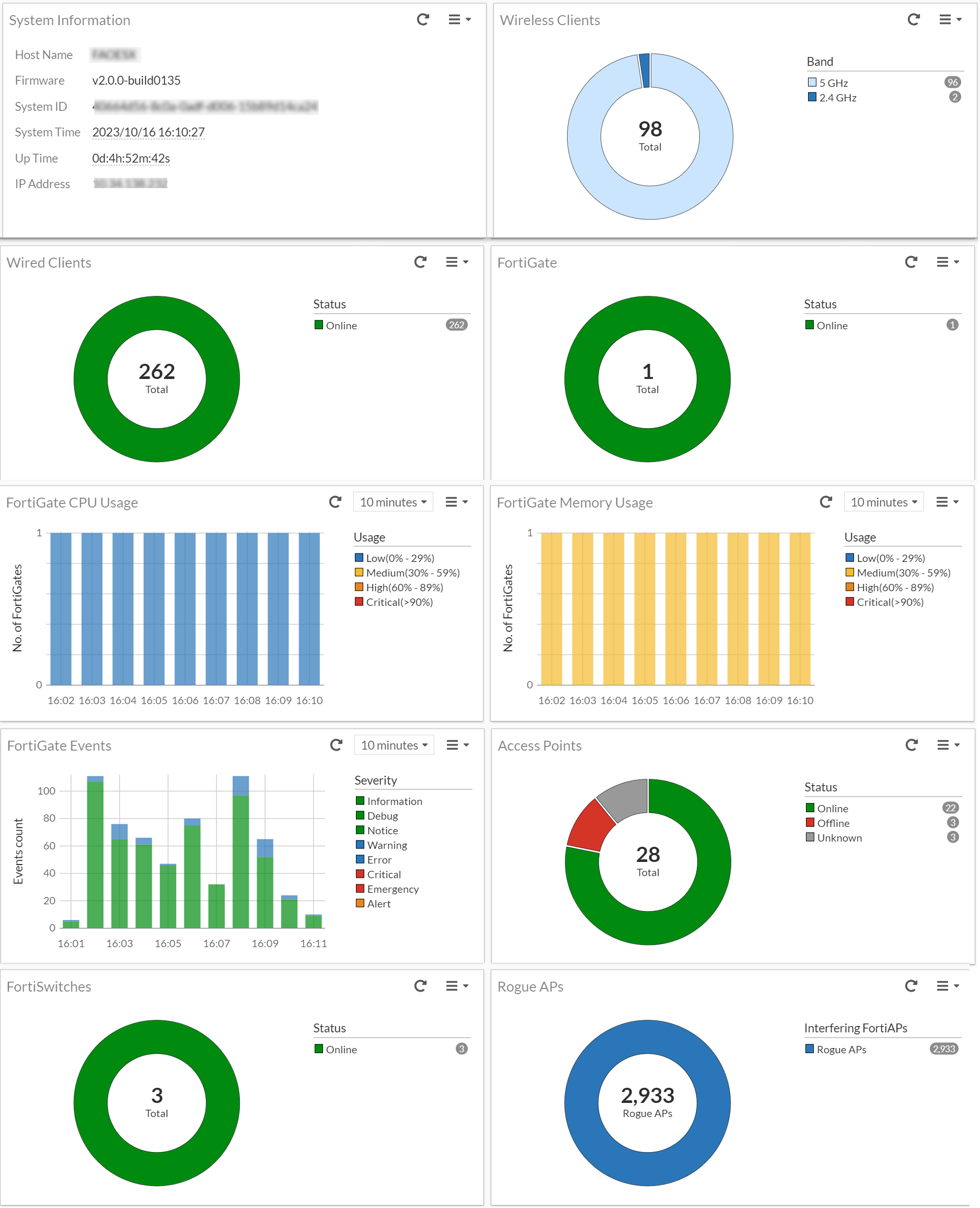

This dashboard provides visual summarization of key system information, network elements, and resource usage. The interactive graphs and charts allow you to navigate into detailed views of network statistics for analytical and monitoring purpose.

The data on this dashboard is automatically refreshed every 60 seconds; the following options are available to manage the auto-refresh feature for this page.

• Click to manually refresh data.

• Click to pause the auto-refresh.

• Click to resume the auto-refresh.

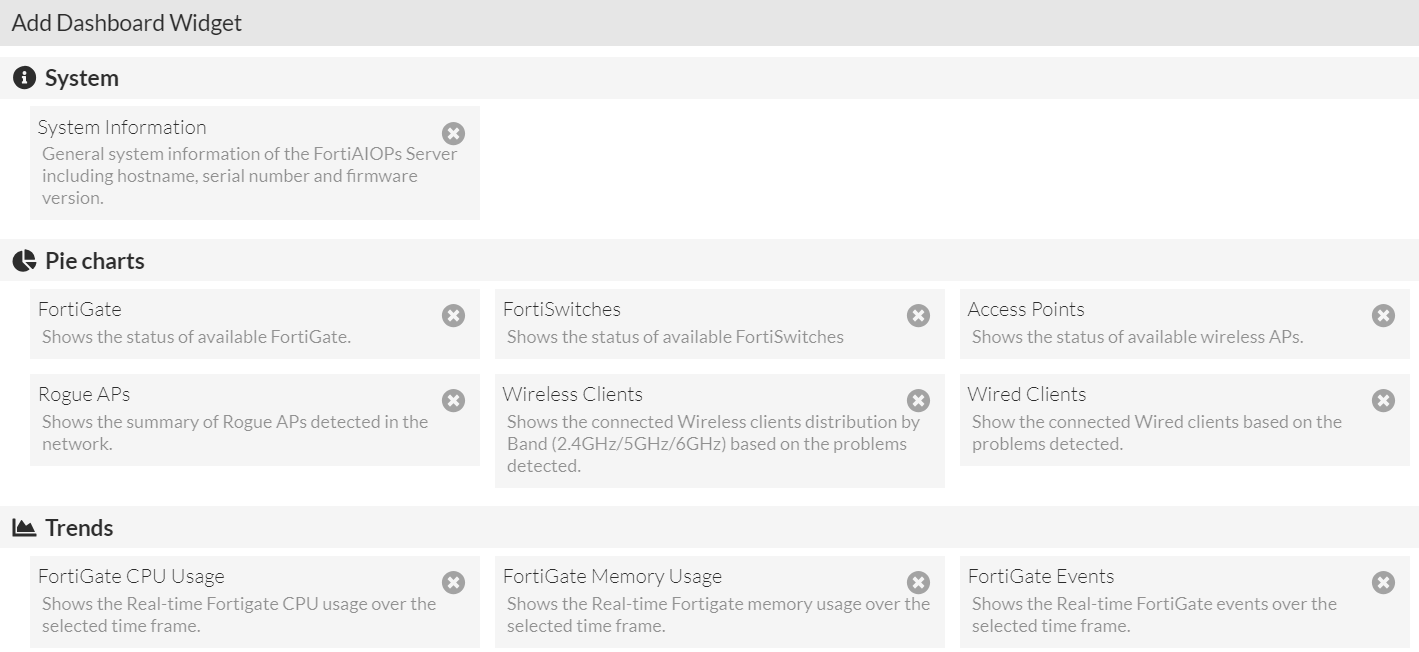

Use the Add Widget option to manage the widgets displayed on the dashboard; you can choose to add or remove the widgets.

The following widgets provide network data on this dashboard.

• System Information - This widget provides generic information about the FortiGate controller such as the host name, firmware version, system ID, current system time, uptime, and the IP address.

• Wireless Clients - Displays the total number of connected clients with their band categorization of 2.4GHz, 5GHz, and 6GHz. Click on the chart to navigate to Wireless > Clients.

• Wired Clients - Displays the total number of connected clients with their status.

• FortiGate - Displays the total number of FortiGate controllers in your network and their status (Online/Offline). Click on the chart to navigate to Inventory > Managed FortiGates.

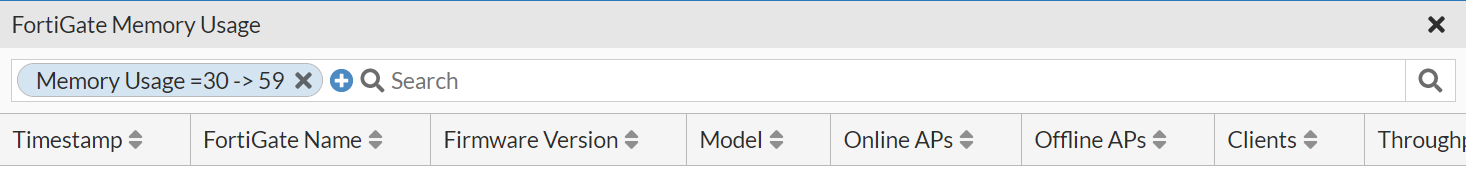

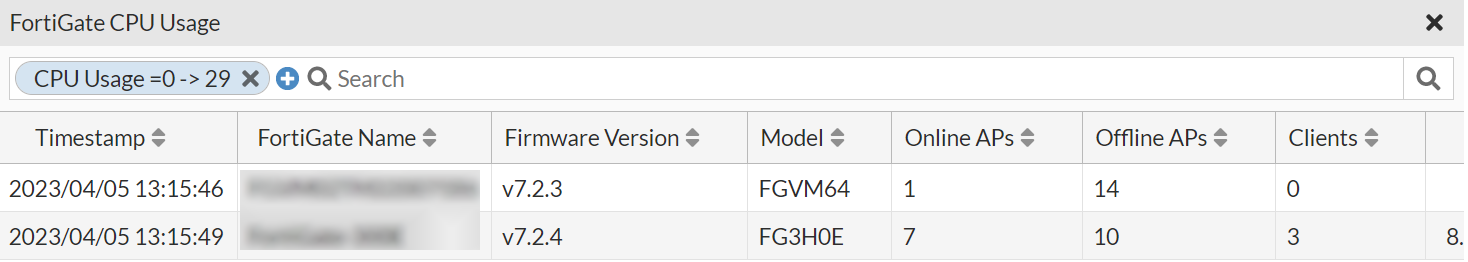

• FortiGate CPU Usage and FortiGate Memory Usage - Displays the real-time FotiGate CPU and memory usage at a given time and categorizes it as Low, Medium, High, and Critical. You can select the period to view the resource usage (10 or 30 minutes, 1, 12, or 24 hours). Click on the graph to view the details.

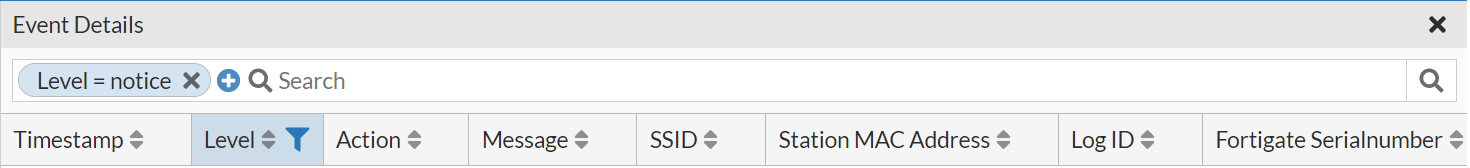

• FortiGate Events - Displays the FotiGate events at a given time and categorizes them based on the severity level as, Information, Debug, Notice, Warning, Error, Critical, Emergency, and Alert. You can select the period to view the data (10 or 30 minutes, 1, 12, or 24 hours).



• Access Points - Displays the total number of access points in your network and their status (Online, Offine, Waiting for Authorization, or Unknown). Click on the chart to navigate to Wireless > Access Points.

• FortiSwitches - Displays the total number of FortiSwitches in your network and their status (Online, Offine, Waiting for Authorization, or Unknown). Click on the chart to navigate to Switch > FortiSwitch.

• Rogue APs - Displays the total number of rogue access points detected in your network. Click on the chart to navigate to Wireless > Rogue APs.
