Creating the Captive Portal profile on the FortiWLC

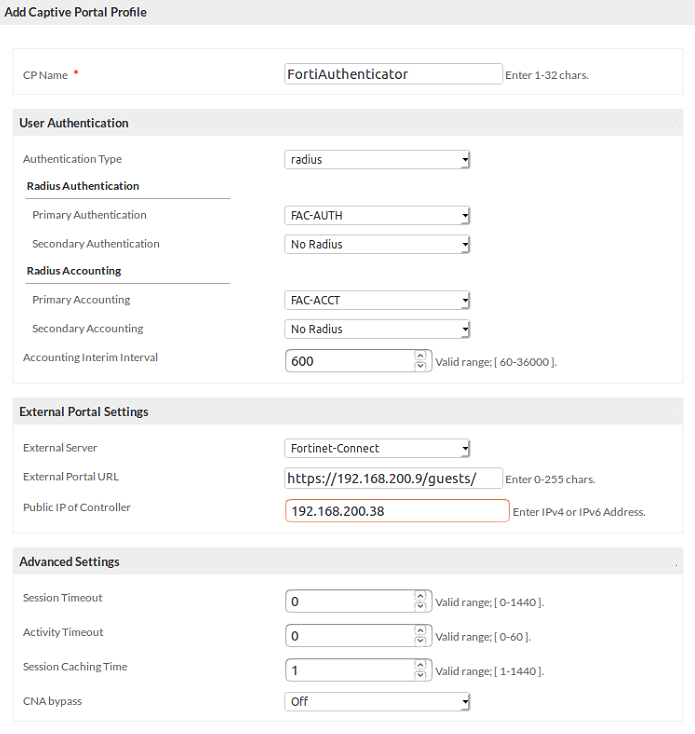

  1. On the FortiWLC, go to Configuration > Security > Captive Portal, select the Captive Portal Profiles tab, and ADD a new profile.
  • CP Name: Enter a name for the profile.
  • Authentication Type: RADIUS
  • Primary Authentication:Your Authentication profile.
  • Primary Accounting: Your Accounting profile.
  • External Server: Fortinet-Connect
  • External Portal: https://<fortiauthenticator-ip>/guests
  • Public IP of Controller: IP address that the FortiAuthenticator can use to communicate with the FortiWLC.
