What's new

The following sections describe new features, enhancements, and changes in FortiProxy 7.2.9:

• Reorder server URL by dragging and dropping

• Require password to access encrypted archive files

• FortiAnalyzer logging is now optional for license sharing

• FortiNBI new features and changes

• CLI changes

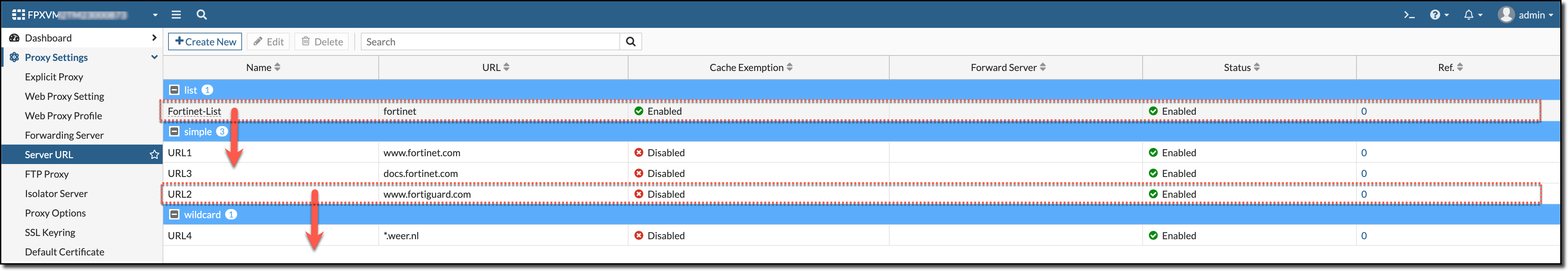

Reorder server URL by dragging and dropping

Under Proxy Settings > Server URL, you can now drag and drop the items to quickly reorder them as needed.

Require password to access encrypted archive files

You can now configure FortiProxy to require password for access to encrypted archive files using the new encrypted-file-log option under config firewall profile-protocol-options. The default is disable. When enabled, an HTTP(S) replacement message is displayed to request a password to decrypt and scan encrypted file. Files failed to decrypt will be blocked.

config firewall profile-protocol-options

edit "decrypt"

config http

set encrypted-file inspect {This option must be set to inspect.}

set encrypted-file-log enable

end

next

end

FortiAnalyzer logging is now optional for license sharing

FortiProxy 7.2.9 no longer requires FortiAnalyzer logging to be enabled for license sharing. However, you may still need to enable FortiAnalyzer logging in order to use any security fabric functionality.

CLI changes

FortiProxy 7.2.9 includes the following CLI changes:

• config ips sensor—Use the new last-modified option to filter by signatures' last modified date (default = before 00/00/00).

  The date format is yyyy/mm/dd. The year range is 2001 - 2050.

• diag wad stats—Use the new clear option to reset all WAD data. This option clears all history data but not the current run-time data.

• diagnose wad memory track—New map information in the mmap_stats section.

• diagnose wad tcp-connection list <worker-index>/all—Use this new command to show the information of the top 10 dynamic TCP connections, which is helpful for troubleshooting.

  Example output:

  diagnose wad tcp-connection list all

  ===type=worker index=0 pid=1387===

  Group by src_ip(only show top 10):

  10.5.2.39 count=3160

  Group by dst_ip:port(only show top 10):

  74.6.160.107:443 count=904

  142.251.33.67:80 count=834

  Group by dst_port(only show top 10):

  443 count=1738

  ===type=worker index=1 pid=1389===

  Group by src_ip(only show top 10):

  10.5.2.39 count=3160

  Group by dst_ip:port(only show top 10):

  74.6.160.107:443 count=904

  142.251.33.67:80 count=834

  Group by dst_port(only show top 10):

  443 count=1738

• WAD authentication and HTTP engine data is consolidated into shared memory. As a result, the following commands are changed:

  • dia wad stats worker.http_engine—You can now use this command to dump HTTP engine data.

  • dia wad stats worker.auth—This command now includes WAD authentication data.


  Example output:

  # dia wad stats worker.http_engine

  http_1way_svr.total_req 0

  http_1way_svr.served_req 0

  http_1way_svr.total_server 0

  http_1way_svr.active_server 0

  http.total_req 0

  http.total_sessions 0

  webcache.total_req 0

  webcache.concurrent_req 0

  web_proxy.total_req 0

  web_proxy.total_sessions 0

  web_proxy.concurrent_req 0

  web_proxy.concurrent_sessions 0

  n_http_reqs 0

  n_long_http_reqs 0

  n_vary_reqs 0

  n_connect_reqs 0

  n_ftp_reqs 0

  n_req_invalid_url 0

  n_req_invalid_header 0

  n_req_unexpect_body 0

  n_req_child_uci_complex 0

  n_req_child_uci_fail 0

  n_req_fwd 0

  n_req_rspd 0

  n_req_errors 0

  n_req_error_sp 0

  n_req_error_hs 0

  n_req_error_act 0

  n_req_error_es 0

  n_req_add_hdr_error 0

  n_req_bad_request 0

  n_req_dns_failed 0

  n_req_bad_http_ver 0

  n_nontp_reqs 0

  n_nontp_connect_ok 0

  n_connect_req_error 0

  n_req_cancel 0

  n_http_rsps 0

  n_rsp_errors 0

  n_rsp_error_info 0

  n_rsp_error_1_0 0

  n_rsp_error_proc 0

  n_rsp_1xx 0

  n_connect_rsp 0

  n_rsp_from_cache 0

  n_rsp_miss_504 0

  n_rsp_neg 0

  n_rsp_invalidate 0

  n_rsp_add_hdr_error 0

  n_rsp_invalid_header 0

  n_rsp_407_from_fwd_svr 0

  n_rsp_malformed_cors_preflight 0

  n_warn_wait_dns 0

  n_warn_wait_auth 0

  n_warn_wait_videofilter 0

  n_warn_wait_urlfilter 0

  n_warn_wait_msg_proc 0

  n_warn_wait_scan 0

  n_warn_proc_resp 0

  n_warn_wait_antiphish 0

  n_icap_req_start 0

  n_icap_req_end 0

  n_icap_resp_start 0

  n_icap_resp_end 0

  n_icap_unchanged 0

  n_icap_error_client 0

  n_icap_error_server 0

  n_icap_block 0

  n_icap_unblock 0

  n_suspend_svr_read 0

  n_resume_svr_read 0

  n_cvrt_tun_by_non_http_resp_ok 0

  n_cvrt_tun_by_non_http_resp_fail0

  n_off_ssl_ctx 0

  n_unexpected_resp 0

  n_rsp_cache_errors 0

  n_ce_evading 0

  n_ce_utm_skip 0

  n_ce_utm_block 0

  n_ce_utm_bypass 0

  n_ce_utm_inspect 0

  n_conserve_drop 0

  n_conserve_bypass 0

  n_scan_errors 0

  n_comfort_unique_req 0

  n_total_comfort_fires 0

  n_ignoed_reqs_cannot_conn 0

  n_unexpected_h2_conn 0

  n_ia_bypass 0

  n_ia_scan 0

  dns_protect.n_total 0

  dns_protect.n_valid 0

  dns_protect.n_ip 0

  dns_protect.n_failure 0

  dns_protect.n_now 0

  dns_protect.n_max 0

  # dia wad stats worker.?

  ...

  worker.http_engine Show http_engine statistics.

  worker.auth Show auth statistics.

  worker.auth.saml Show auth_saml statistics.

  worker.auth.basic Show auth_basic statistics.

  worker.auth.cert Show auth_cert statistics.

  worker.auth.cookie Show auth_cookie statistics.

  worker.auth.digest Show auth_digest statistics.

  worker.auth.fsae Show auth_fsae statistics.

  worker.auth.krb Show auth_krb statistics.

  worker.auth.mix Show auth_mix statistics.

  worker.auth.ntlm Show auth_ntlm statistics.

  worker.auth.pkey Show auth_pkey statistics.

  worker.auth.rsso Show auth_rsso statistics.

  worker.auth.user_query Show auth_user_query statistics.

  ...

  # dia wad stats worker.auth

  saml.n_saml_req 0

  saml.n_saml_resp 0

  saml.n_saml_auth_success 0

  saml.n_saml_auth_fail 0

  saml.n_saml_num_assertion_attr 0

  saml.n_saml_num_max_attr 0

  saml.n_saml_relay_max_len 0

  saml.n_saml_relay_encode_fail 0

  saml.n_saml_relay_decode_fail 0

  saml.n_saml_relay_over_limit 0

  saml.n_grpsid_query_sent 0

  saml.n_grpsid_query_fail 0

  saml.n_grp_fnbamd_fail 0

  saml.n_grp_fail 0

  saml.n_dc_query_sent 0

  saml.n_dc_cached_hit 0

  saml.n_err_queue_ses 0

  saml.n_err_clk_skew 0

  saml.n_err_assertion_coin 0

  saml.n_err_assertion_invl 0

  saml.n_err_assertion_audience 0

  saml.n_err_assertion_attr 0

  saml.n_err_provider 0

  saml.n_err_signature 0

  saml.n_err_signing_algo 0

  saml.n_err_internal 0

  saml.n_err_invalid_req 0

  saml.n_err_lasso 0

  basic.n_basic_req now 0 max 0 total 0

  basic.n_basic_auth_success 0

  basic.n_basic_auth_fail 0

  cert.n_cert_req now 0 max 0 total 0

  cert.n_cert_auth_success 0

  cert.n_cert_auth_fail 0

  cookie.n_cookie_req now 0 max 0 total 0

  cookie.n_cookie_auth_success 0

  cookie.n_cookie_auth_fail 0

  digest.n_digest_req now 0 max 0 total 0

  digest.n_digest_auth_success 0

  digest.n_digest_auth_fail 0

  digest.n_auth_staled 0

  digest.n_active_digest_nounce 0

  digest.n_digest_nounce 0

  fsae.n_fsae_req now 0 max 0 total 0

  fsae.n_fsae_auth_success 0

  fsae.n_fsae_auth_fail 0

  krb.n_krb_req now 0 max 0 total 0

  krb.n_krb_auth_success 0

  krb.n_krb_auth_fail 0

  mix.n_mix_req now 0 max 0 total 0

  mix.n_mix_auth_success 0

  mix.n_mix_auth_fail 0

  ntlm.n_ntlm_req now 0 max 0 total 0

  ntlm.n_ntlm_auth_success 0

  ntlm.n_ntlm_auth_fail 0

  pkey.n_pkey_req now 0 max 0 total 0

  pkey.n_pkey_auth_success 0

  pkey.n_pkey_auth_fail 0

  rsso.n_rsso_req now 0 max 0 total 0

  rsso.n_rsso_auth_success 0

  rsso.n_rsso_auth_fail 0

  user_query.n_user_query_req now 0 max 0 total 0

  user_query.n_user_query_auth_success 0

  user_query.n_user_query_auth_fail 0
